Kycon, Inc. KPJX-CM-4S
MPNKPJX-CM-4S
Active

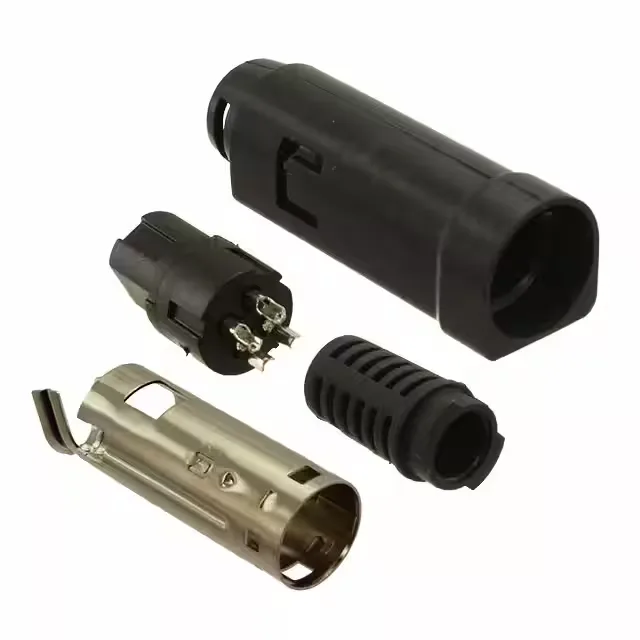

CONN RCPT FMALE 4POS SOLDER CUP
$7.07Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesKPJX-CM
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | KPJX-CM |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle, Female Sockets |
| Fastening type | Snap-In |
| Voltage rating | 48VDC |
| Current rating | 7.5A |
| Cable opening | 0.248\" (6.30mm) |
| Operating temperature | -40°C ~ 85°C |
| Color | Black |
| Shell material | Polyacrylonitrile Butadiene Styrene (ABS) |
| Insert material | Polyamide (PA), Nylon |
| Contact material | Brass |
All specifications
| Parameter | Value |
|---|---|
| Primary material | Plastic |
| Backshell material, plating | Polyacrylonitrile Butadiene Styrene (ABS) |
| Material flammability rating | UL94 HB, UL94 V-2 |
| Package | Bulk |
| Features | Backshell, Strain Relief |
| Shielding | Unshielded |
| Orientation | Keyed |
| Termination | Solder Cup |
| Applications | Digital, Power |
| Positions | 4 (Power) |
| Shell size - insert | Power DIN |
| Contact finish - mating | Tin |
