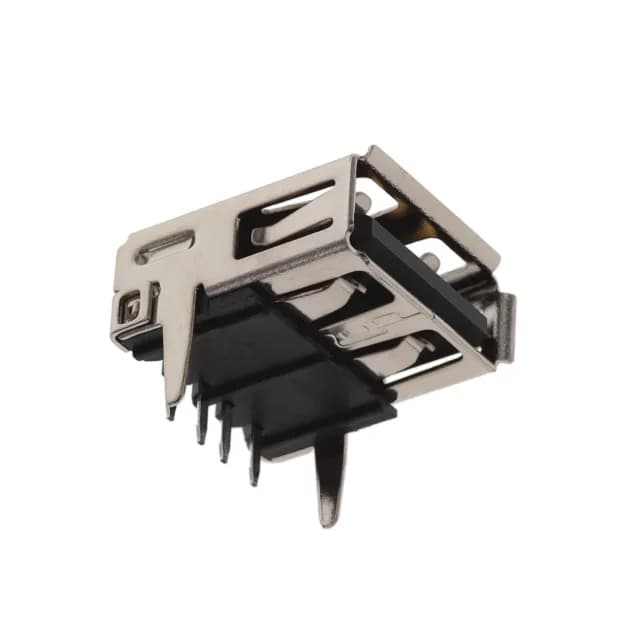

Kycon, Inc. KUSBEXHT-ASFS1N-B-RO
MPNKUSBEXHT-ASFS1N-B-RO
Active
USB TYPE-A RECEPT HIGH TEMP REVE
$0.6700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesKUSBEX
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | KUSBEX |
| Mounting | Through Hole, Right Angle |
| Connector type | USB-A (USB TYPE-A) |
| Voltage - rated | 30VAC/DC |
| Current rating | 1.5A |
| Positions | 4 |
| Mounting feature | Horizontal, Reverse Mount |
| Operating temperature | -55°C ~ 105°C |
| Insulation color | Black |
| Shell (Shielding material) | Steel, Stainless |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
All specifications
| Parameter | Value |
|---|---|
| Package | Tube |
| Features | Board Guide |
| Shielding | Shielded |
| Termination | Solder |
| Mating cycles | 1500 |
| Contact finish | Gold |
| Number of ports | 1 |
