Major League Electronics LSMBC-103-D-02-GT-TR-K-LF — Female Socket Headers

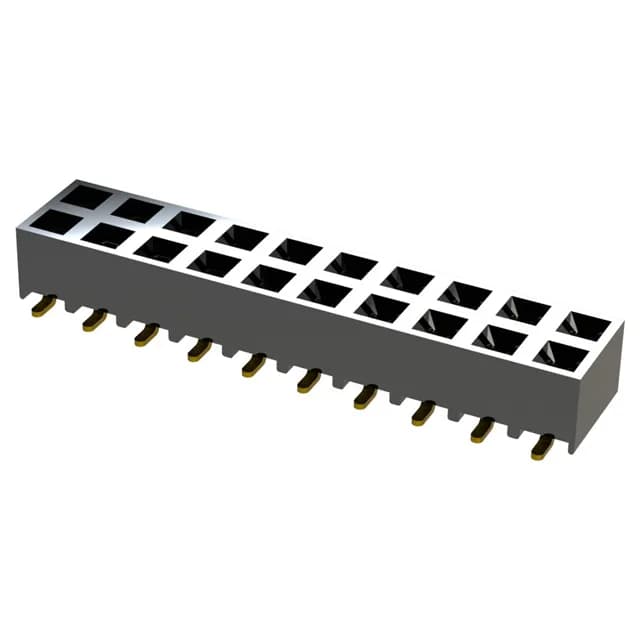

Major League Electronics LSMBC-103-D-02-GT-TR-K-LF

MPNLSMBC-103-D-02-GT-TR-K-LF
Active
$0.3000Ref. price · indicative, final on quote
Major League Electronics LSMBC-103-D-02-GT-TR-K-LF datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

LSMBC-103-D-02-GT-TR-K-LF key specifications
ParameterValue
SeriesLSMBC-1
TypeFemale Socket
MountingSurface Mount
Connector typeReceptacle, Pass Through
Fastening typePush-Pull
Current rating3A
Operating temperature-40°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.145\" (3.68mm)
Insulation materialLiquid Crystal Polymer (LCP), Glass Filled; Polyester
Material flammability ratingUL94 V-0

All specifications

LSMBC-103-D-02-GT-TR-K-LF additional specifications
ParameterValue
StyleBoard to Board
PackageBag
FeaturesPick and Place
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions6
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact finish - matingGold
Contact finish thickness - mating10.0µin (0.25µm)
