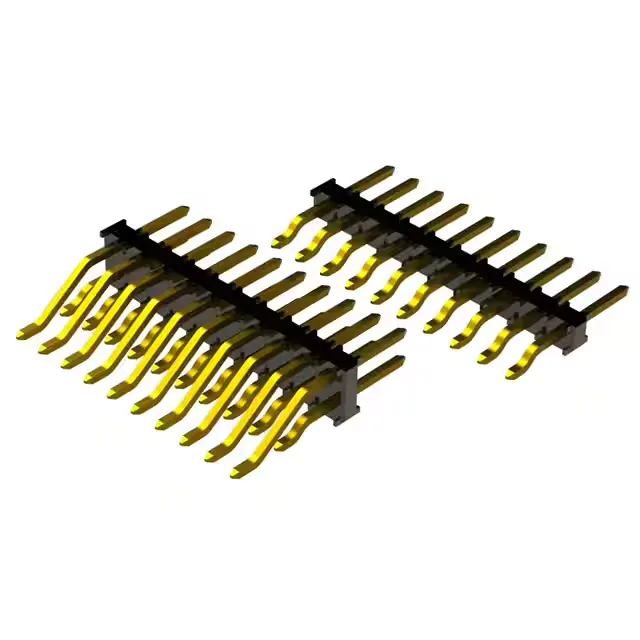

Major League Electronics LTSHSM-103-S-01-T-H-001-AP-TR-P-LF

Major League Electronics LTSHSM-103-S-01-T-H-001-AP-TR-P-LF

MPNLTSHSM-103-S-01-T-H-001-AP-TR-P-LF
Active

.100 Header

$0.17Ref. price · indicative, final on quote
Major League Electronics LTSHSM-103-S-01-T-H-001-AP-TR-P-LF datasheet (PDF)
RoHSRoHS Compliant
SeriesLTSHSM-H
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

LTSHSM-103-S-01-T-H-001-AP-TR-P-LF key specifications
ParameterValue
SeriesLTSHSM-H
TypeMale Pin
MountingSurface Mount, Right Angle
Connector typeHeader
Fastening typePush-Pull
Current rating3A
Operating temperature-40°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.100\" (2.54mm)
Insulation materialPolyamide (PA6T), Nylon 6T
StyleBoard to Board

All specifications

LTSHSM-103-S-01-T-H-001-AP-TR-P-LF additional specifications
ParameterValue
PackageBag
FeaturesBoard Guide, Pick and Place
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions3
Contact finish - postTin
Contact finish - matingTin
Contact length - mating0.150\" (3.81mm)
