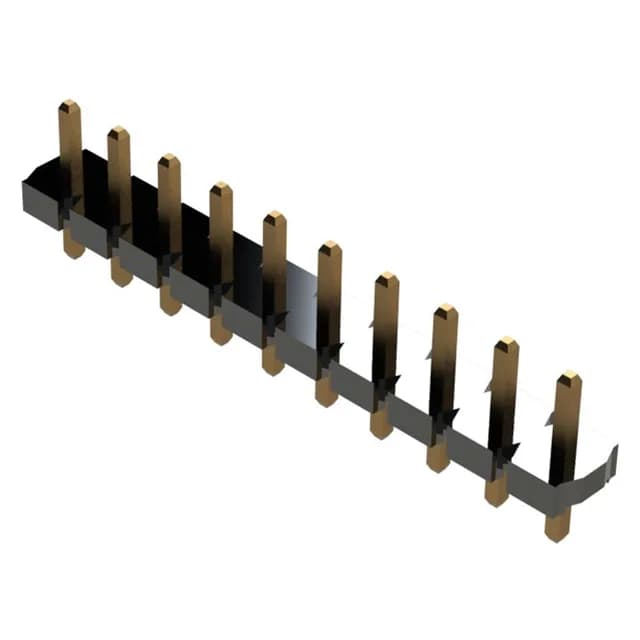

Major League Electronics PC200HR-08-S-06-T-LF
MPNPC200HR-08-S-06-T-LF
Active
$1.1800Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | PC200HR |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 7.9A |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact length - post | 0.180\" (4.57mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.318\" (8.08mm) |
