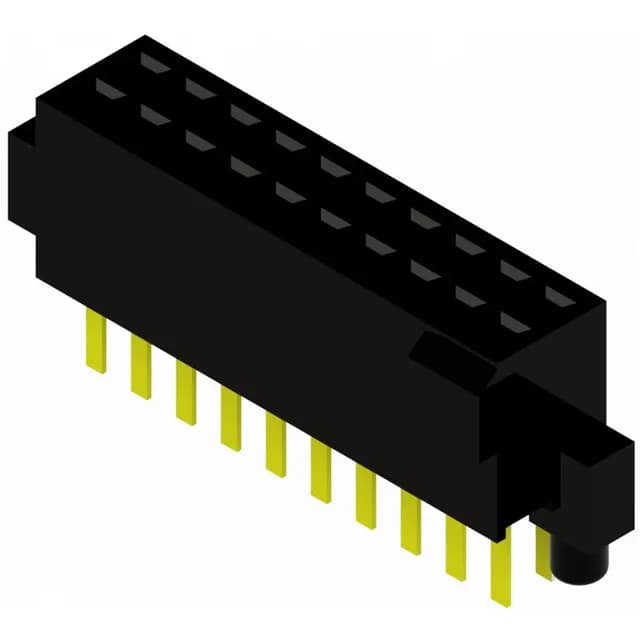

Major League Electronics PSSHS-515-D-SAD-F-B-LF — Female Socket Headers

Major League Electronics PSSHS-515-D-SAD-F-B-LF

MPNPSSHS-515-D-SAD-F-B-LF
Active
$0.9500Ref. price · indicative, final on quote
Major League Electronics PSSHS-515-D-SAD-F-B-LF datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

PSSHS-515-D-SAD-F-B-LF key specifications
ParameterValue
SeriesPSSHS-5
TypeFemale Socket
MountingThrough Hole
Connector typeReceptacle
Fastening typePush-Pull
Current rating1A
Operating temperature-40°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.173\" (4.40mm)
Insulation materialPolyamide (PA6T), Nylon 6T
StyleBoard to Board

All specifications

PSSHS-515-D-SAD-F-B-LF additional specifications
ParameterValue
PackageBag
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.050\" (1.27mm)
Positions30
Row spacing - mating0.050\" (1.27mm)
Contact finish - postGold
Contact finish - matingGold
Contact finish thickness - postFlash
Contact finish thickness - matingFlash
