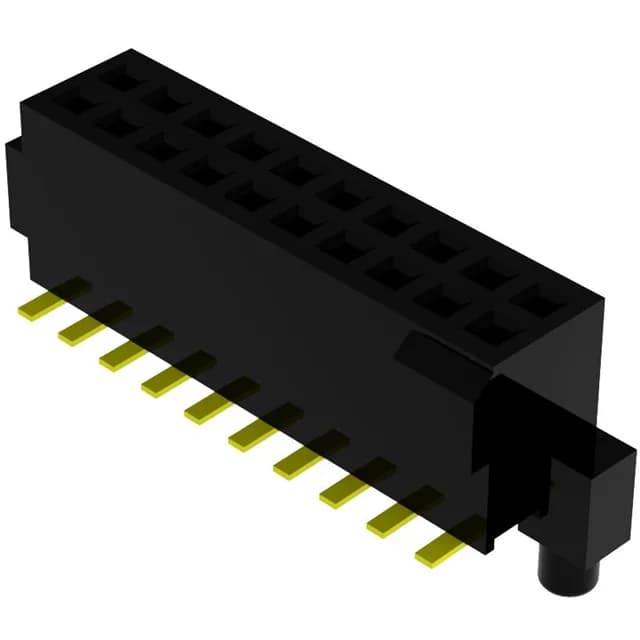

Major League Electronics PSSHSM-510-D-06-GT-AP-TR-P-LF — Female Socket Headers

Major League Electronics PSSHSM-510-D-06-GT-AP-TR-P-LF

MPNPSSHSM-510-D-06-GT-AP-TR-P-LF
Active
$0.8800Ref. price · indicative, final on quote
Major League Electronics PSSHSM-510-D-06-GT-AP-TR-P-LF datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

PSSHSM-510-D-06-GT-AP-TR-P-LF key specifications
ParameterValue
SeriesPSSHSM-5
TypeFemale Socket
MountingSurface Mount
Connector typeReceptacle
Fastening typePush-Pull
Current rating1A
Operating temperature-40°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.181\" (4.60mm)
Insulation materialPolyamide (PA6T), Nylon 6T
StyleBoard to Board

All specifications

PSSHSM-510-D-06-GT-AP-TR-P-LF additional specifications
ParameterValue
PackageBag
FeaturesBoard Lock, Pick and Place
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.050\" (1.27mm)
Positions20
Contact finish - postTin
Contact finish - matingGold
Contact finish thickness - mating10.0µin (0.25µm)
