Major League Electronics PTSHSM-510-D-06-F-AP-TR-P-LF — Pin Headers

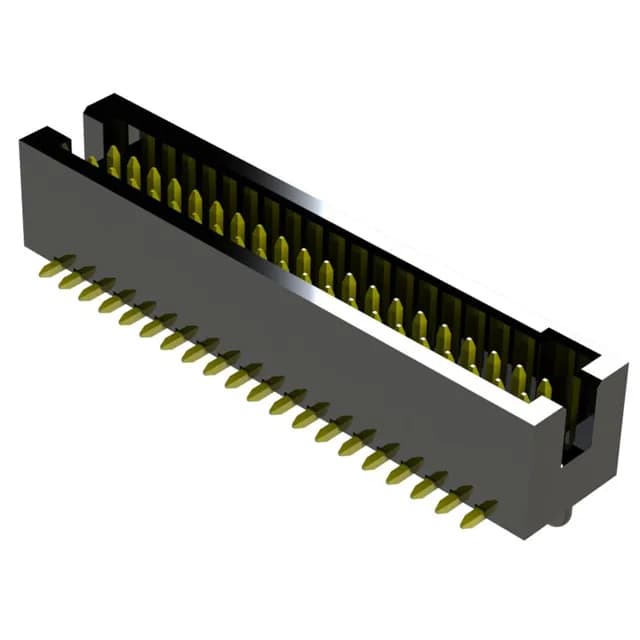

Major League Electronics PTSHSM-510-D-06-F-AP-TR-P-LF

MPNPTSHSM-510-D-06-F-AP-TR-P-LF
Active
$0.6900Ref. price · indicative, final on quote
Major League Electronics PTSHSM-510-D-06-F-AP-TR-P-LF datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

PTSHSM-510-D-06-F-AP-TR-P-LF key specifications
ParameterValue
SeriesPTSHSM-5
TypeMale Pin
MountingSurface Mount
Connector typeHeader
Fastening typePush-Pull
Current rating1A
Operating temperature-40°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.287\" (7.29mm)
Insulation materialPolyamide (PA6T), Nylon 6T
StyleBoard to Board

All specifications

PTSHSM-510-D-06-F-AP-TR-P-LF additional specifications
ParameterValue
PackageBag
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.050\" (1.27mm)
Positions20
Row spacing - mating0.050\" (1.27mm)
Contact finish - postGold
Contact finish - matingGold
Contact finish thickness - postFlash
Contact finish thickness - matingFlash
