Major League Electronics SMBC-105-D-02-GT-V-TR-K-LF — Pin Headers

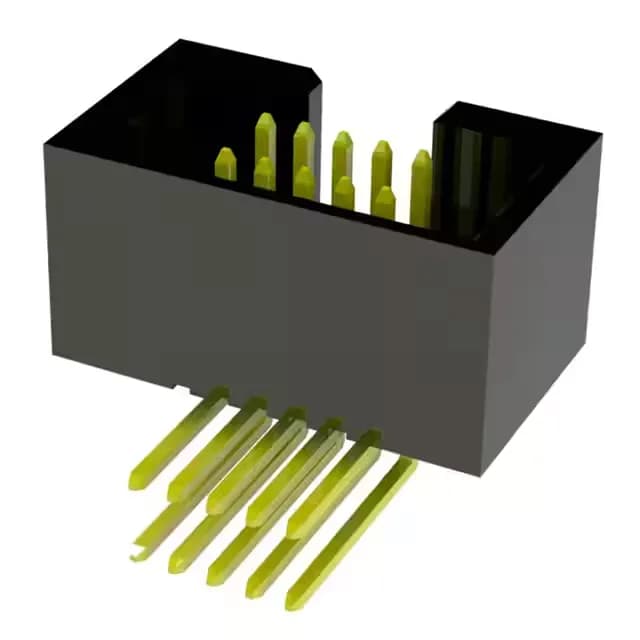

Major League Electronics SMBC-105-D-02-GT-V-TR-K-LF

MPNSMBC-105-D-02-GT-V-TR-K-LF
Active

.100 Socket

$0.4500Ref. price · indicative, final on quote
Major League Electronics SMBC-105-D-02-GT-V-TR-K-LF datasheet (PDF)
RoHSRoHS Compliant
SeriesSMBC-1-V
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

SMBC-105-D-02-GT-V-TR-K-LF key specifications
ParameterValue
SeriesSMBC-1-V
TypeFemale Socket
MountingSurface Mount
Connector typeHeader
Fastening typePush-Pull
Current rating3A
Operating temperature-40°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.295\" (7.50mm)
Insulation materialPolyamide (PA6T), Nylon 6T
StyleBoard to Board

All specifications

SMBC-105-D-02-GT-V-TR-K-LF additional specifications
ParameterValue
PackageBag
TerminationSolder
Contact shapeSquare
Pitch0.100\" (2.54mm)
Positions10
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact finish - matingGold
Contact finish thickness - mating10.0µin (0.25µm)
