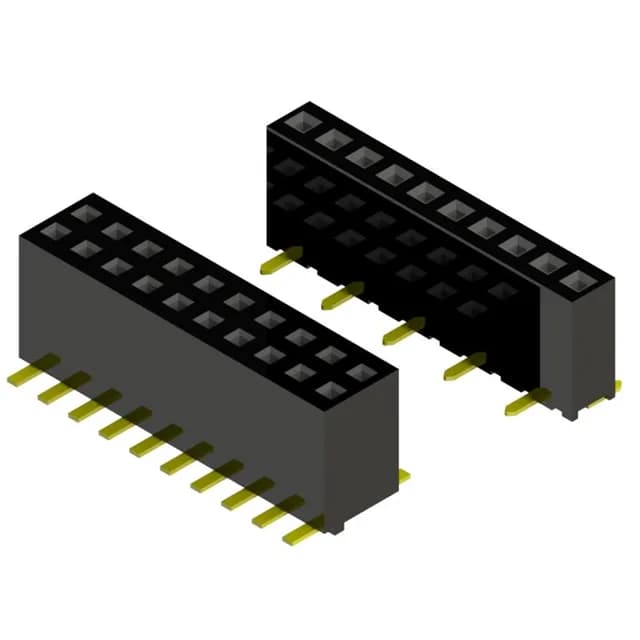

Major League Electronics SMSS-515-D-06-G-TR-K-LF
MPNSMSS-515-D-06-G-TR-K-LF
Active
$2.1900Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SMSS-5 |
| Type | Female Socket |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Current rating | 1A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.181\" (4.60mm) |
| Insulation material | Polyamide (PA6T), Nylon 6T |
| Style | Board to Board |
All specifications
| Parameter | Value |
|---|---|
| Package | Bag |
| Features | Pick and Place |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 30 |
| Row spacing - mating | 0.050\" (1.27mm) |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
