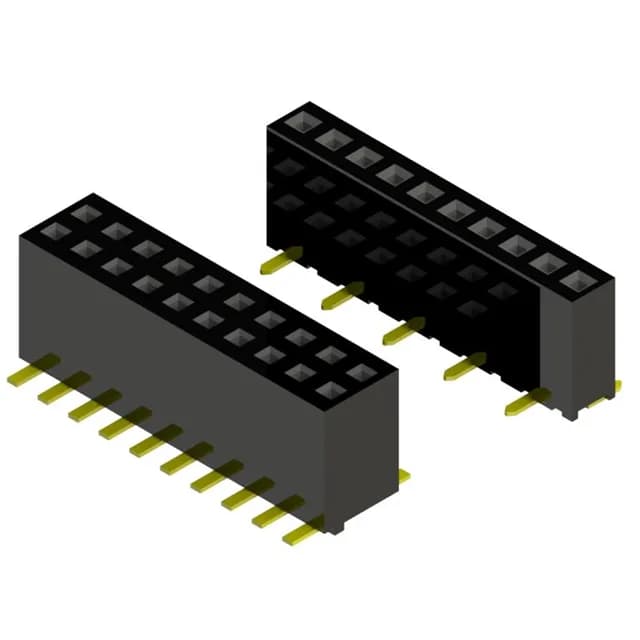

Major League Electronics SMSS-520-D-06-F-K-AP-LF — Female Socket Headers

Major League Electronics SMSS-520-D-06-F-K-AP-LF

MPNSMSS-520-D-06-F-K-AP-LF
Active
$1.9200Ref. price · indicative, final on quote
Major League Electronics SMSS-520-D-06-F-K-AP-LF datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

SMSS-520-D-06-F-K-AP-LF key specifications
ParameterValue
SeriesSMSS-5
TypeFemale Socket
MountingSurface Mount
Connector typeReceptacle
Fastening typePush-Pull
Current rating1A
Operating temperature-40°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.181\" (4.60mm)
Insulation materialPolyamide (PA6T), Nylon 6T
StyleBoard to Board

All specifications

SMSS-520-D-06-F-K-AP-LF additional specifications
ParameterValue
PackageBag
FeaturesBoard Guide, Pick and Place
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions40
Row spacing - mating0.050\" (1.27mm)
Contact finish - postGold
Contact finish - matingGold
Contact finish thickness - postFlash
Contact finish thickness - matingFlash
