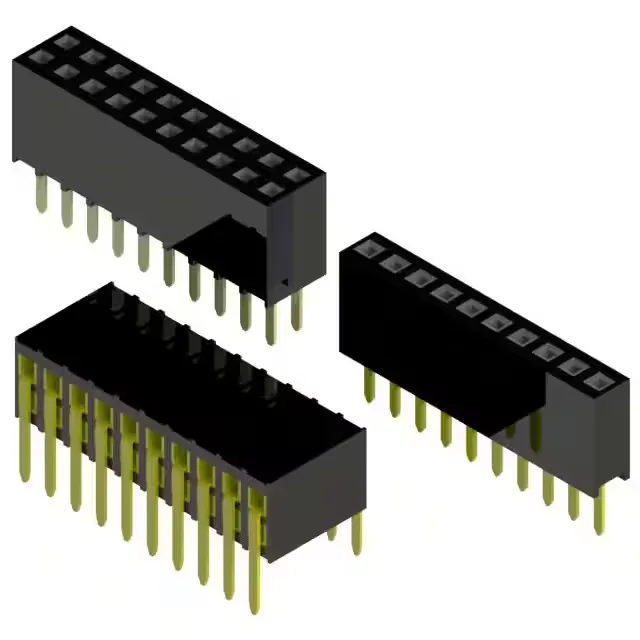

.050 x .050 Socket
$0.42Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | SSHS-5 |
| Gender | Female Socket |
| Mounting type | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Current rating | 1.5A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.169\" (4.30mm) |
| Insulation material | Polyamide (PA6T), Nylon 6T |
| Style | Board to Board |
| Package | Bag |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 14 |
| Contact finish - post | Tin |
| Contact length - post | 0.090\" (2.29mm) |
| Contact finish - mating | Tin |
Sourcing this connector
Major League Electronics SSHS-514-S-04-T-LF is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against Major League Electronics and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
