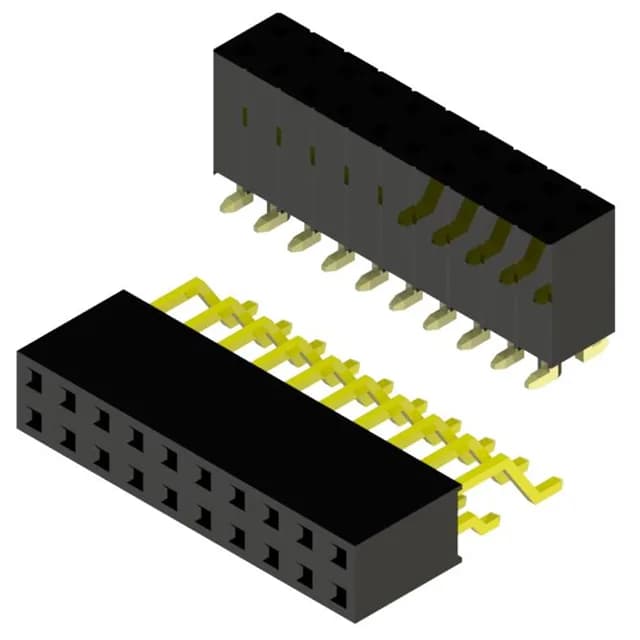

Major League Electronics SSHSM-210-D-02-GT-V-TR-P-LF
MPNSSHSM-210-D-02-GT-V-TR-P-LF
Active
$0.8600Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SSHSM-2-V |
| Type | Forked |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Current rating | 2A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.305\" (7.75mm) |
| Insulation material | Polyamide (PA6T), Nylon 6T |
| Style | Board to Board |
All specifications
| Parameter | Value |
|---|---|
| Package | Bag |
| Features | Pick and Place |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 20 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
