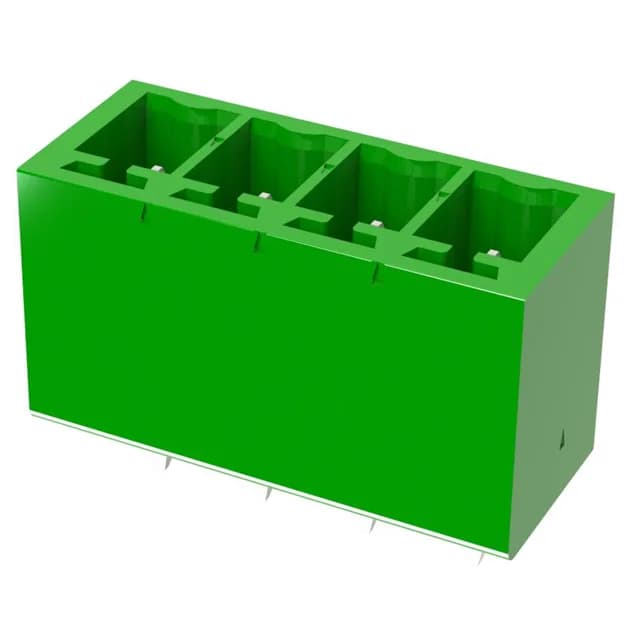

Major League Electronics TBPH-00-150-07-GR-LF
MPNTBPH-00-150-07-GR-LF
Active
$0.5500Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | TBPH-00-150 |
| Mounting | Through Hole |
| Voltage - UL | 250 V |
| Current - UL | 8 A |
| Operating temperature | -33°C ~ 105°C |
| Color | Green |
| Contact material | Brass |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.362\" (9.20mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.150\" (3.81mm) |
All specifications
| Parameter | Value |
|---|---|
| Package | Bag |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | Vertical |
| Contact tail length | 0.138\" (3.50mm) |
| Positions | 7 |
| Positions per level | 7 |
| Contact mating finish | Tin |
