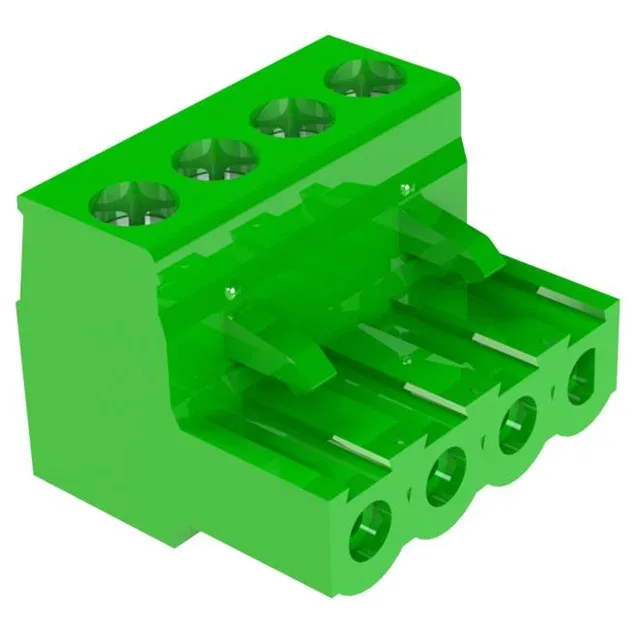

Major League Electronics TBPS-00-200-13-GR-LF
MPNTBPS-00-200-13-GR-LF
Active
Terminal Blocks
$3.11Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesTBPS-00-150
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | TBPS-00-150 |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 250 V |
| Current - UL | 10 A |
| Plug wire entry | 180° |
| Wire strip length | 4-6mm |
| Wire gauge or range - AWG | 12-26 AWG |
| Operating temperature | -33°C ~ 105°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA66), Nylon 6/6 |
All specifications
| Parameter | Value |
|---|---|
| Insulation height | 0.590\" (14.99mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
| Package | Bag |
| Features | Retention Latches (Non-Wire Side) |
| Screw size | M3 |
| Torque - screw | 0.49 Nm (4.3 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 13 |
| Positions per level | 13 |
| Contact mating finish | Tin |
