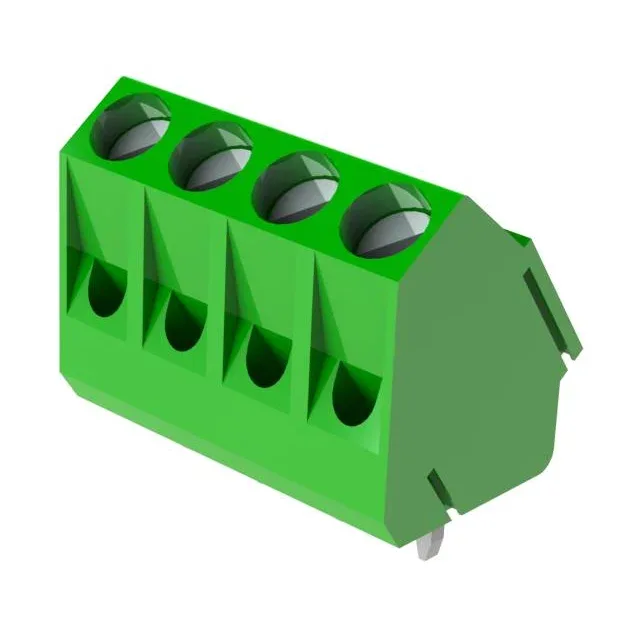

Major League Electronics TBR-00-197-03-GR-LF
MPNTBR-00-197-03-GR-LF
Active
Terminal Blocks
$0.41Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesTBR-00-197
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | TBR-00-197 |
| Mounting | Through Hole |
| Voltage | 250 V |
| Current | 10 A |
| Wire gauge | 12-26 AWG |
| Wire termination | Screw - Rising Cage Clamp |
| Operating temperature | -33°C ~ 105°C |
| Color | Green |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Screw material - plating | Steel - Zinc Plated |
| Contact material - plating | Brass - Nickel Plated |
| Pitch | 0.197\" (5.00mm) |
| Package | Bag |
| Screw thread | M2.5 |
| Torque - screw | 0.4 Nm (3.5 Lb-In) |
| Number of levels | 1 |
| Mating orientation | 45° (135°) Angle with Board |
| Positions per level | 3 |
