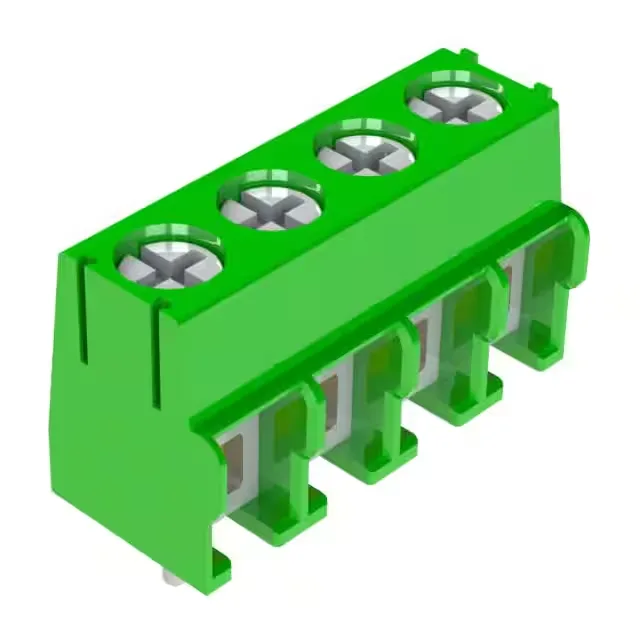

Major League Electronics TBW-02-197-03-GR-LF
MPNTBW-02-197-03-GR-LF
Active
Terminal Blocks
$0.33Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesTBW-02-197
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | TBW-02-197 |
| Mounting | Through Hole |
| Voltage | 250 V |
| Current | 10 A |
| Wire gauge | 14-24 AWG |
| Wire termination | Screw - Leaf Spring, Wire Guard |
| Operating temperature | -33°C ~ 105°C |
| Color | Green |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Screw material - plating | Steel - Zinc Plated |
| Contact material - plating | Steel, Stainless |
| Pitch | 0.197\" (5.00mm) |
All specifications
| Parameter | Value |
|---|---|
| Package | Bag |
| Features | Interlocking (Side) |
| Screw thread | M3 |
| Torque - screw | 0.39 Nm (3.47 Lb-In) |
| Number of levels | 1 |
| Mating orientation | Horizontal with Board |
| Positions per level | 3 |
