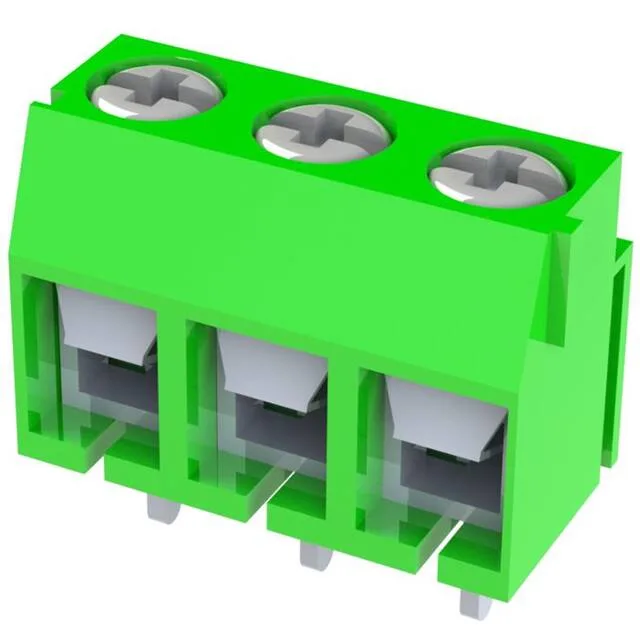

Terminal Blocks
$0.28Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | TBW-04-197 |
| Mounting type | Through Hole |
| Voltage | 250 V |
| Current | 10 A |
| Wire gauge | 14-24 AWG |
| Wire termination | Screw - Leaf Spring, Wire Guard |
| Operating temperature | -33°C ~ 105°C |
| Color | Green |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Screw material - plating | Steel - Zinc Plated |
| Contact material - plating | Steel, Stainless |
| Pitch | 0.197\" (5.00mm) |
| Package | Bag |
| Features | Interlocking (Side) |
| Screw thread | M2.5 |
| Torque - screw | 0.34 Nm (3.04 Lb-In) |
| Number of levels | 1 |
| Mating orientation | Horizontal with Board |
| Positions per level | 3 |
Sourcing this connector
Major League Electronics TBW-04-197-03-GR-LF is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against Major League Electronics and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
