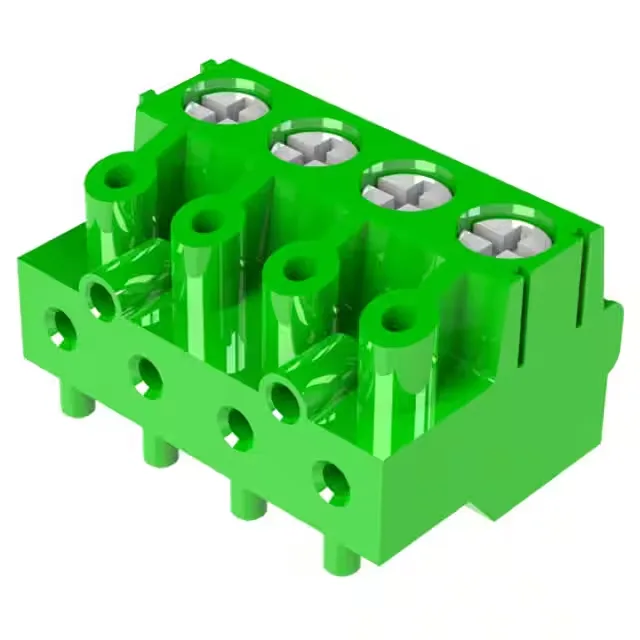

Major League Electronics TBW-11-197-06-GR-LF
MPNTBW-11-197-06-GR-LF
Active
Terminal Blocks
$0.88Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesTBW-04-197
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug for Unshrouded Header |
| Series | TBW-04-197 |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 250 V |
| Current - UL | 10 A |
| Plug wire entry | 90° |
| Wire strip length | 5-6mm |
| Wire gauge or range - AWG | 14-24 AWG |
| Operating temperature | -33°C ~ 105°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA66), Nylon 6/6 |
All specifications
| Parameter | Value |
|---|---|
| Insulation height | 0.433\" (11.00mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
| Package | Bag |
| Screw size | M2.5 |
| Torque - screw | 0.34 Nm (3.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Leaf Spring, Wire Guard |
| Positions | 6 |
| Positions per level | 6 |
| Contact mating finish | Tin |
