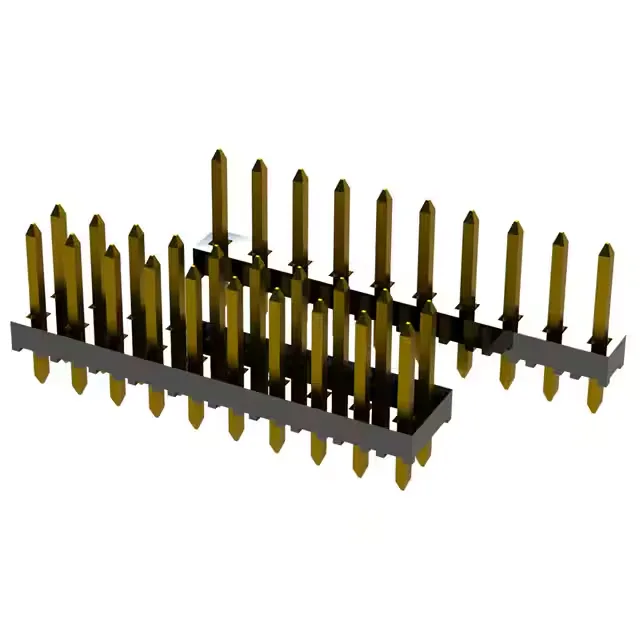

Major League Electronics TSHS-240-D-18-F-LF
MPNTSHS-240-D-18-F-LF
Active
.079 Header
$2.03Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesTSHS-2
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | TSHS-2 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.059\" (1.50mm) |
| Insulation material | Polyamide (PA6T), Nylon 6T |
| Style | Board to Board |
All specifications
| Parameter | Value |
|---|---|
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 80 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Gold |
| Contact length - post | 0.200\" (5.08mm) |
| Overall contact length | 0.417\" (10.59mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.158\" (4.01mm) |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | Flash |
