Major League Electronics TSHSM-105-D-04-T-H-TR-P-LF — Pin Headers

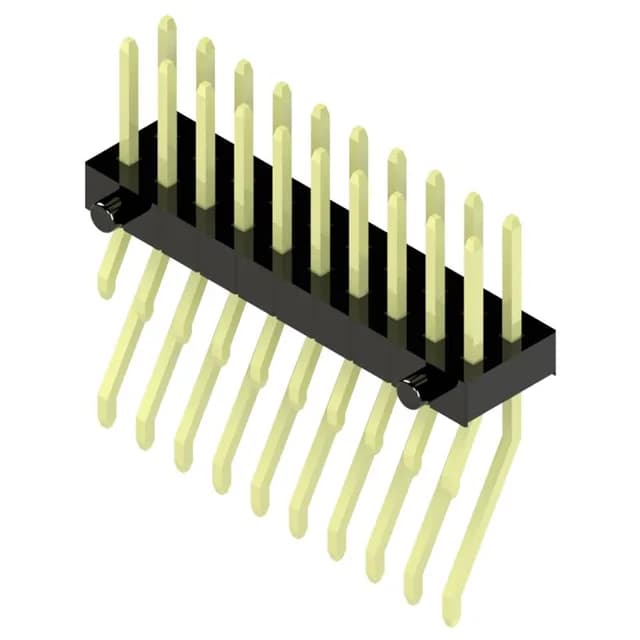

Major League Electronics TSHSM-105-D-04-T-H-TR-P-LF

MPNTSHSM-105-D-04-T-H-TR-P-LF
Active
$0.4800Ref. price · indicative, final on quote
Major League Electronics TSHSM-105-D-04-T-H-TR-P-LF datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

TSHSM-105-D-04-T-H-TR-P-LF key specifications
ParameterValue
SeriesTSHSM-1-H
TypeMale Pin
MountingSurface Mount, Right Angle
Connector typeHeader
Fastening typePush-Pull
Current rating3A
Operating temperature-40°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.240\" (6.10mm)
Insulation materialPolyamide (PA6T), Nylon 6T
StyleBoard to Board

All specifications

TSHSM-105-D-04-T-H-TR-P-LF additional specifications
ParameterValue
PackageBag
FeaturesPick and Place
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions10
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact finish - matingTin
Contact length - mating0.320\" (8.13mm)
