Major League Electronics TSHSM-105-D-06-GT-V-TR-P-LF — Pin Headers

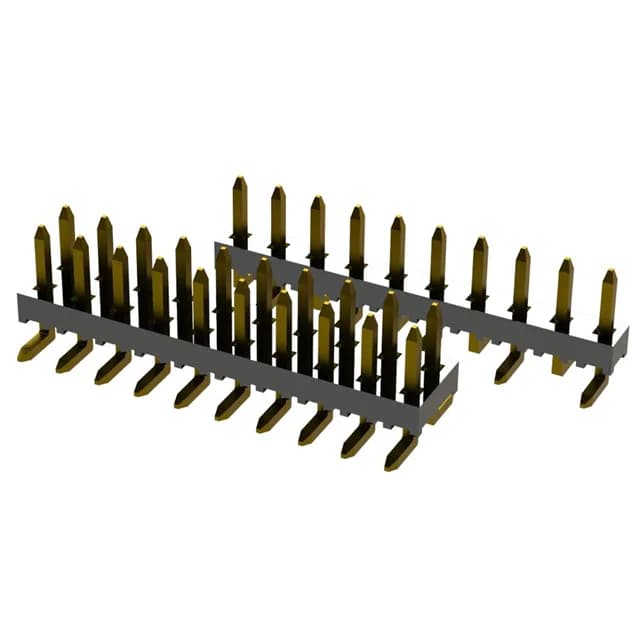

Major League Electronics TSHSM-105-D-06-GT-V-TR-P-LF

MPNTSHSM-105-D-06-GT-V-TR-P-LF
Active
$0.5000Ref. price · indicative, final on quote
Major League Electronics TSHSM-105-D-06-GT-V-TR-P-LF datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

TSHSM-105-D-06-GT-V-TR-P-LF key specifications
ParameterValue
TypeMale Pin
MountingSurface Mount
Connector typeHeader
Fastening typePush-Pull
Current rating3A
Operating temperature-40°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.100\" (2.54mm)
Insulation materialPolyamide (PA6T), Nylon 6T
StyleBoard to Board
PackageBag

All specifications

TSHSM-105-D-06-GT-V-TR-P-LF additional specifications
ParameterValue
FeaturesPick and Place
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions10
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact finish - matingGold
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - mating10.0µin (0.25µm)
