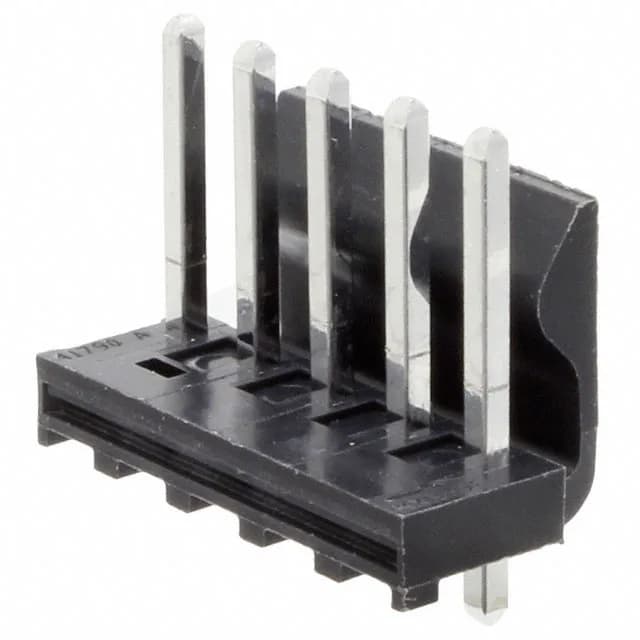

Molex 1718130005 KK396 Header, 5 Pos, 3.96mm, Friction Lock

MPN1718130005
Active

Molex KK396 171813 series, Board to Board or Cable header, 5 positions, 3.96mm pitch, single row, shrouded 1 wall, friction lock, through hole, solder termination, tin plating, UL94 V-2, Active

$0.7100Ref. price · indicative, final on quote
Molex 1718130005 datasheet (PDF)
RoHSROHS3 Compliant
SeriesKK396, 171813
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1718130005 key specifications
ParameterValue
SeriesKK396, 171813
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeFriction Lock
Contact materialBrass
Insulation colorBlack
Insulation height0.446\" (11.33mm)
Insulation materialPolyamide (PA), Nylon
Material flammability ratingUL94 V-2
StyleBoard to Board or Cable
PackageBulk

All specifications

1718130005 additional specifications
ParameterValue
ShroudingShrouded - 1 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Medical, Telecommunications
Contact shapeSquare
Rows1
Pitch0.156\" (3.96mm)
Positions5
Contact finish - postTin
Contact length - post0.093\" (2.35mm)
Overall contact length0.671\" (17.05mm)
Contact finish - matingTin
Contact length - mating0.448\" (11.38mm)
Contact finish thickness - post60.0µin (1.52µm)
Contact finish thickness - mating60.0µin (1.52µm)

Product details

3.96mm pitch, 5 circuits, friction lock

Molex 1718130005 is a vertical, through-hole header from the KK396 series, delivering 5 circuits on a 3.96mm pitch in a single row. The 1-wall shroud and friction lock keep the mating housing seated under vibration — a practical choice for industrial control cabinets and automotive interior harnesses where the connector sees occasional handling but not constant flex.

Contact finish and current path

Tin is a workable choice for moderate mating cycles — the 60µin thickness provides a stable oxide layer for consistent contact resistance in dry environments.

Frequently asked questions

Where can I buy Molex 1718130005?

We source 1718130005 per RFQ — confirm the BOM quantity and we will quote current pricing and lead time from our supply chain.

What is the pinout of 1718130005?

The header has 5 positions, all loaded, in a single row. Pin 1 is typically marked by a polarisation notch or chamfer on the shroud; the mating housing keys to the 1-wall shroud to prevent reverse insertion.

What is the mating connector for Molex 1718130005?

The mating half is a KK396 crimp receptacle housing (e.g., Molex 50-84-1050 or equivalent) that accepts the matching crimp terminal. The friction lock on the header engages the lock ramp on the receptacle housing.
