What This DVI-I Dual-Link Receptacle Does in the Assembly

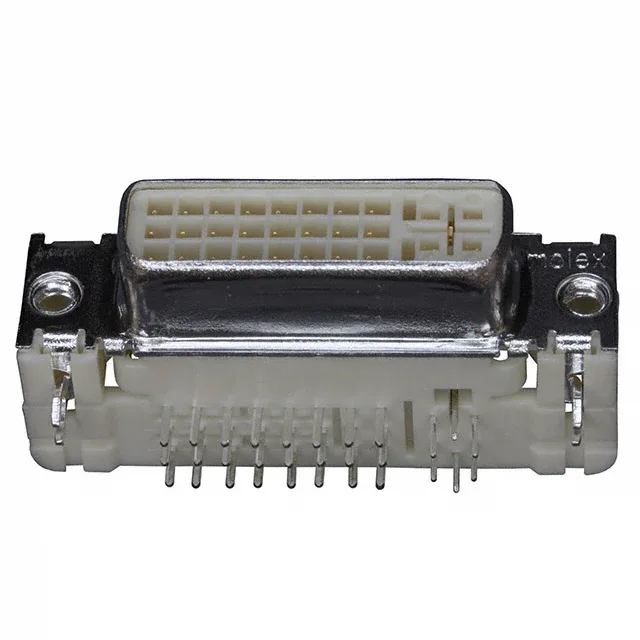

The Molex 743209010 is a DVI-I dual-link receptacle from the MicroCross 74320 series, designed to carry both digital and analog video signals over a single interface. With 29 contacts, it provides the full pinout for dual-link DVI, supporting higher resolutions and longer cable runs than single-link variants. The right-angle orientation and panel-mount flange let it sit flush against a bracket or enclosure wall, while the through-hole solder tails anchor it to the PCB. The steel shield and board lock keep the connector mechanically stable during mating and under cable strain.
Rated 3A per contact at 40VAC, the current capacity is adequate for the power and auxiliary pins in a DVI link, though the primary load is signal, not bulk power. The 100 mating cycles are typical for a board-edge video port — enough for occasional reconnection in a desktop or industrial monitor, but not for a daily-disconnect field cable. Gold plating on the contacts preserves signal integrity across those cycles, resisting corrosion in non-sealed environments.
Mounting and Board-Layout Notes
The board lock feature provides extra solder-joint strain relief during mating, which is useful when the cable is routed near the port. The shield is steel, so it handles grounding and EMI containment without adding excessive weight. The tray packaging means it arrives loose for hand-placement or selective soldering, not reel-fed for automated pick-and-place.
