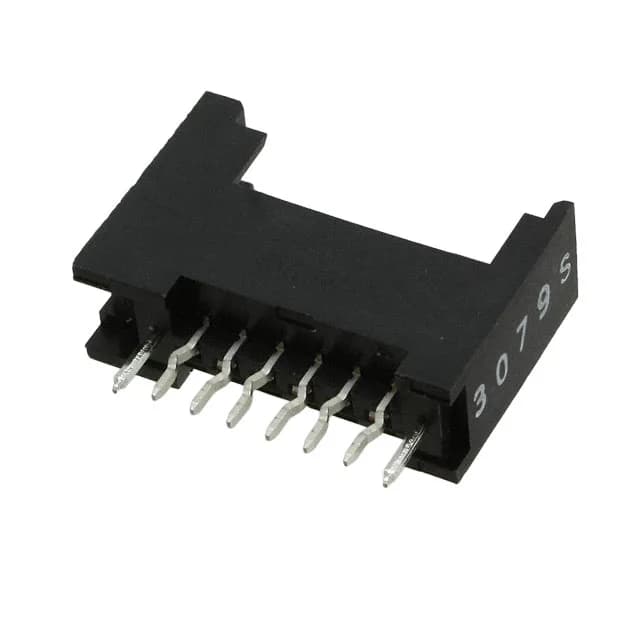

Omron Automation and Safety XN2D-1671
MPNXN2D-1671
Active
CONN RCPT 6POS 0.079 GOLD PCB
$5.6300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesXN2
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | XN2 |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Detent Lock |
| Voltage rating | 32VDC |
| Operating temperature | -30°C ~ 75°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.512\" (13.00mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide |
| Termination | Press-Fit, Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 8.00µin (0.203µm) |
