Omron Electronics Inc-EMC Div — IC & Device Sockets

Omron Electronics Inc-EMC Div IC & Device Sockets — 11 part numbers with specifications and datasheets. Filter by key specs and request a quote on IC Source Direct.

Number of Positions or Pins (Grid)

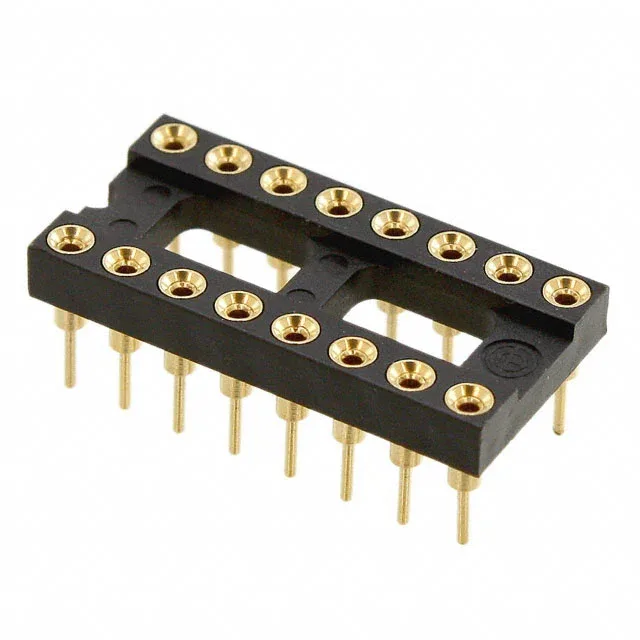

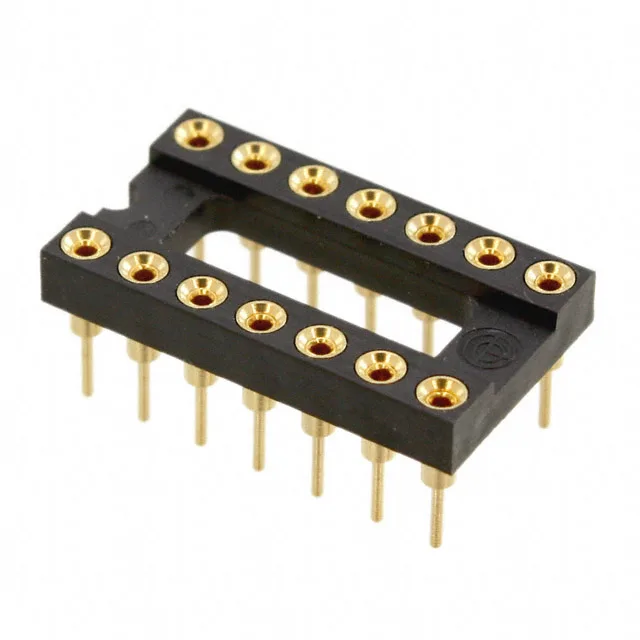

8 (2 x 4) · 14 (2 x 7) · 16 (2 x 8) · 18 (2 x 9)
Termination Post Length
0.126" (3.20mm) · - · 0.138" (3.50mm) · 0.092" (2.33mm)
Contact Finish Thickness - Mating
10.0µin (0.25µm) · Flash · 29.5µin (0.75µm) · 30.0µin (0.76µm)
Contact Finish Thickness - Post
10.0µin (0.25µm) · Flash · 29.5µin (0.75µm) · 30.0µin (0.76µm)
Type

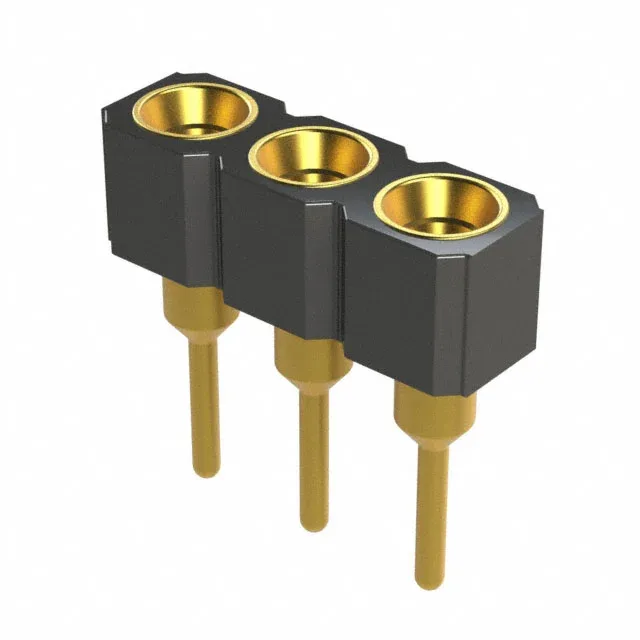

DIP, 0.3" (7.62mm) Row Spacing · DIP, 0.6" (15.24mm) Row Spacing · SIP
Base Product Number
XR2A · XR2C
Contact Material - Post
Beryllium Copper · Brass
Mounting Type
Through Hole · Threaded
