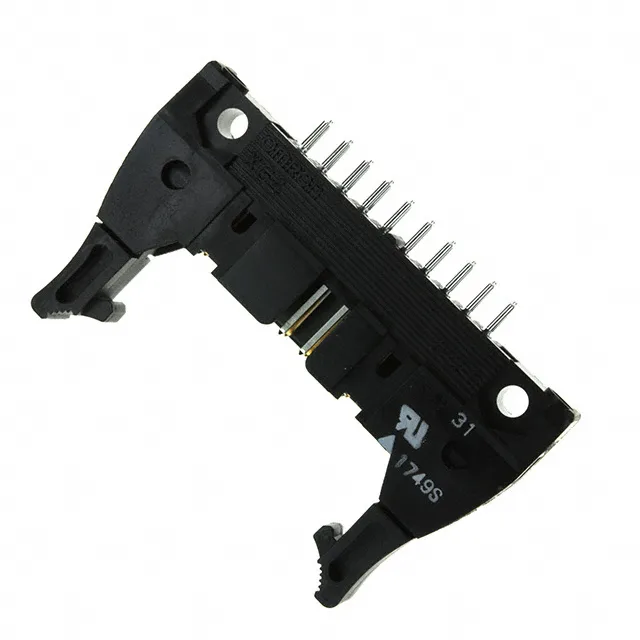

Omron Electronics Inc-EMC Div — Pin Headers, Sockets & Housings

Omron Electronics Inc-EMC Div Pin Headers, Sockets & Housings — 12 part numbers with specifications and datasheets. Filter by key specs and request a quote on IC

Number of Positions
10 · 14 · 16 · 16, 16
Base Product Number
XG4A · XG4C · XG4H · XG8S
Insulation Height
0.669" (17.00mm) · 0.335" (8.51mm) · 0.323" (8.20mm) · 0.283" (7.19mm)
Number of Positions or Pins (Grid)
2 (1 x 2) · 8 (2 x 4) · 14 (2 x 7) · 16 (2 x 8)
Mated Stacking Heights
23.5mm · - · 10.1mm, 19mm, 20.2mm · 9.7mm, 10.1mm
Contact Finish Thickness - Post
78.7µin (2.00µm) · 5.90µin (0.150µm) · - · 10.0µin (0.25µm)
Contact Finish Thickness - Mating
5.90µin (0.150µm) · - · 10.0µin (0.25µm) · Flash
Mounting Type
Through Hole · Through Hole, Right Angle · Surface Mount, Right Angle · Surface Mount
