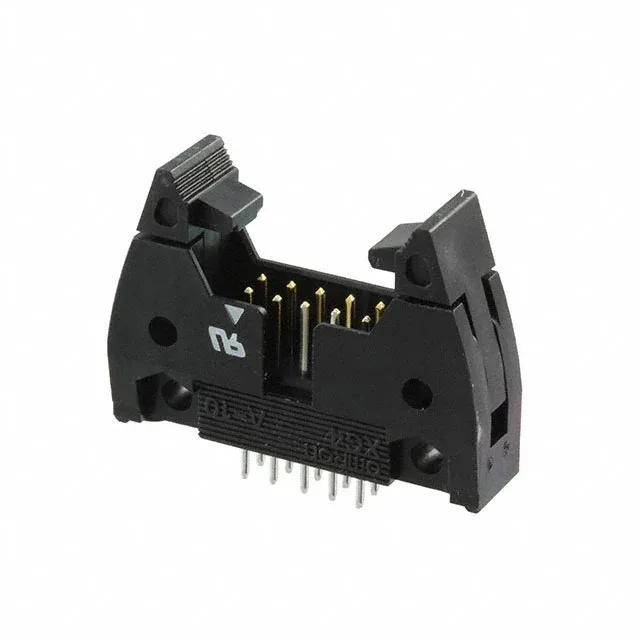

XG4A-1032
Through HoleXG410
Lead time on requestGet quote
Omron Electronics Inc-EMC Div — Pin Headers
Omron Electronics Inc-EMC Div Pin Headers — 28 part numbers with specifications and datasheets. Filter by key specs and request a quote on IC Source Direct.
- Number of Positions
- 10 · 14 · 16 · 16, 16
- Base Product Number
- XG4A · XG4C · XG8S · XG8T
- Insulation Height
- 0.669" (17.00mm) · 0.335" (8.51mm) · 0.323" (8.20mm) · 0.098" (2.50mm)
- Overall Contact Length
- 0.657" (16.70mm) · - · 0.480" (12.19mm) · 0.386" (9.80mm)
- Mated Stacking Heights
- 23.5mm · - · 10.1mm, 19mm, 20.2mm · 8mm, 10.8mm
- Contact Length - Mating
- 0.240" (6.10mm) · 0.169" (4.30mm) · 0.236" (6.00mm) · -
- Contact Length - Post
- 0.126" (3.20mm) · - · 0.118" (3.00mm) · 0.110" (2.79mm)
- Mounting Type
- Through Hole · Through Hole, Right Angle · Surface Mount, Right Angle · Surface Mount
