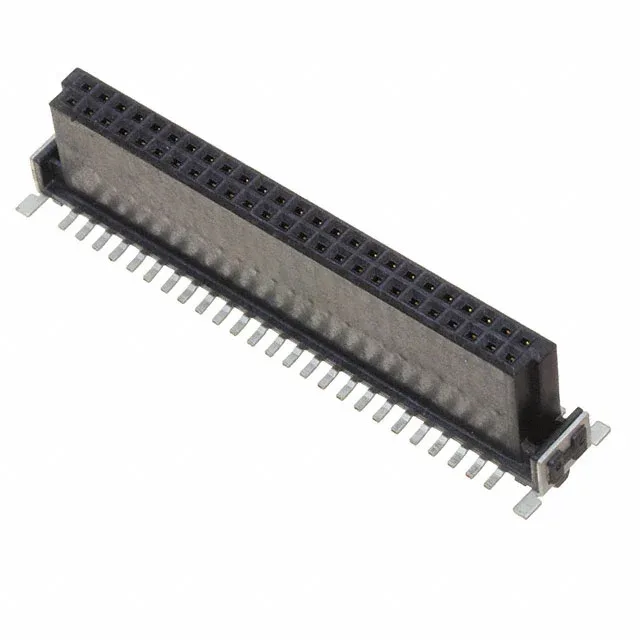

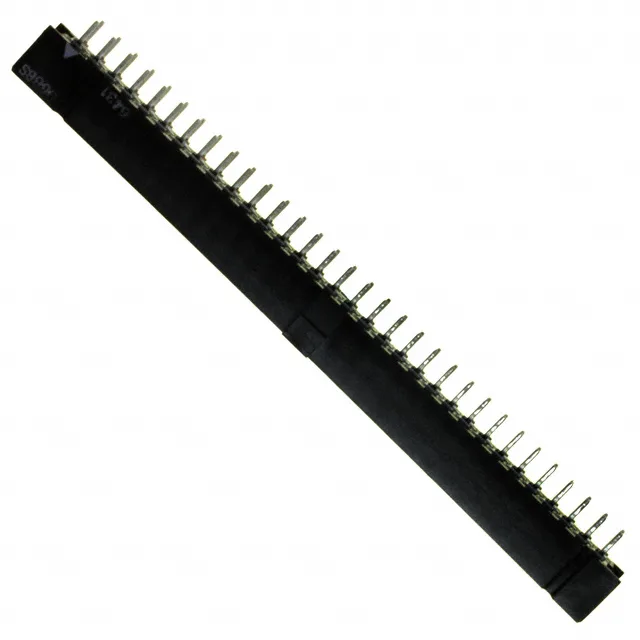

Omron Electronics Inc-EMC Div — Female Socket Headers

Omron Electronics Inc-EMC Div Female Socket Headers — 4 part numbers with specifications and datasheets. Filter by key specs and request a quote on IC Source Direct.

Number of Positions
10 · 14 · 16 · 26
Insulation Height
0.283" (7.19mm) · 0.246" (6.25mm) · 0.356" (9.05mm) · 0.146" (3.70mm)
Mated Stacking Heights
9.7mm, 10.1mm · 8mm, 9.5mm · 10.8mm, 12.3mm · -
Base Product Number
XG4H · XH5B · XH5F
Mounting Type
Through Hole · Surface Mount · Surface Mount, Right Angle
Connector Type
Receptacle · Socket
Contact Finish Thickness - Mating
5.90µin (0.150µm) · -
Contact Finish Thickness - Post
78.7µin (2.00µm) · -
