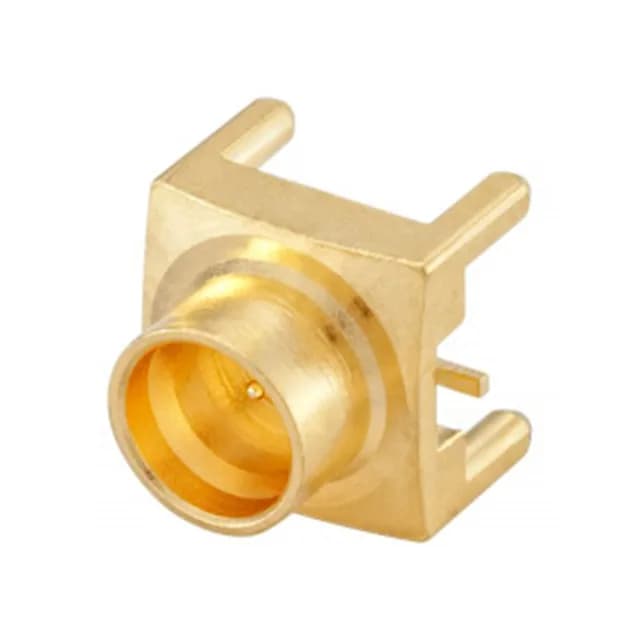

Rosenberger 19S103-400L5
MPN19S103-400L5
Active
$6.4300Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Through Hole |
| Connector type | Plug, Male Pin |
| Fastening type | Snap-On |
| Voltage rating | 335 V |
| Frequency - max | 26.5 GHz |
| Operating temperature | -65°C ~ 155°C |
| Body material | Brass |
| Housing color | Gold |
| Dielectric material | Liquid Crystal Polymer (LCP) |
| Center contact material | Brass |
| Features | Limited Detent |
| Impedance | 50 Ohms |
| Body finish | Gold |
| Mating cycles | 500 |
| Number of ports | 1 |
| Shield termination | Solder |
| Contact termination | Solder |
| Center contact plating | Gold |
