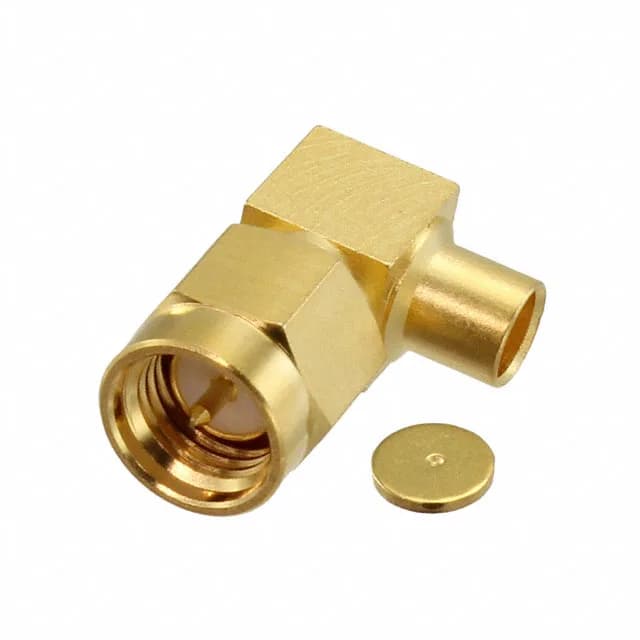

Rosenberger 32S206-272L5
MPN32S206-272L5
Active
$11.9700Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line), Right Angle |
| Connector type | Plug, Male Pin |
| Fastening type | Threaded |
| Voltage rating | 480 V |
| Frequency - max | 12.4 GHz |
| Cable group | RG-402 (.141\" Semi Rigid) |
| Operating temperature | -65°C ~ 165°C |
| Body material | Beryllium Copper, Brass |
| Housing color | Gold |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Brass |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Includes | 2 pcs - 1 Connector, 1 End Cap |
| Impedance | 50 Ohms |
| Body finish | Gold |
| Mating cycles | 500 |
| Number of ports | 1 |
| Shield termination | Solder |
| Contact termination | Solder |
| Center contact plating | Gold |
