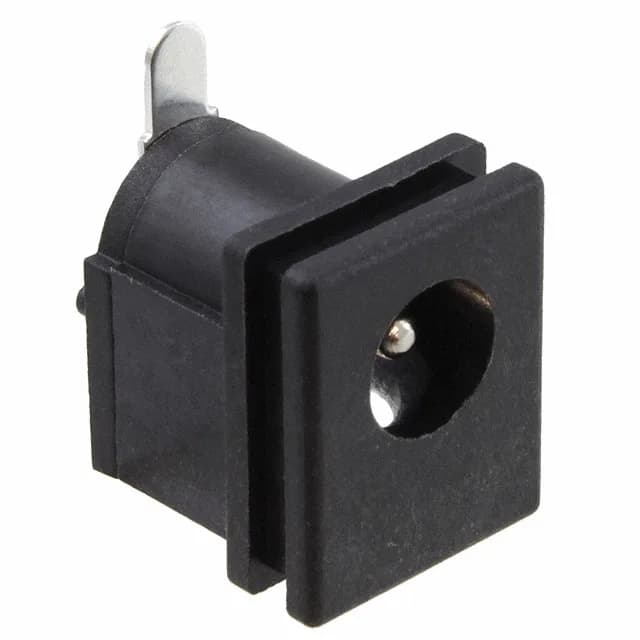

Same Sky PJ-015AH-SMT-TR
MPNPJ-015AH-SMT-TR
Active
$1.3200Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Surface Mount |
| Connector type | Jack |
| Voltage - rated | 24VDC |
| Current rating | 5 A |
| Operating temperature | -25°C ~ 85°C |
| Body color | Black |
| Contact material | Brass, Copper Alloy |
| Housing material | Polyamide (PA6T), Nylon 6T |
| Mating length (Depth) | 0.374\" (9.50mm) |
| Contact material - plating | Silver |
| Material flammability rating | UL94 V-0 |
| Gender | Male |
All specifications
| Parameter | Value |
|---|---|
| Features | Board Guide |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Shielding | Unshielded |
| Termination | Solder |
| Manufacturer | Same Sky |
| Actual diameter | 0.079\" (2.00mm ID), 0.260\" (6.60mm OD) |
| Internal switch | Single Switch, Normally Closed |
| Number of positions (Contacts) | 2 Conductors, 3 Contacts |
| Industry recognized mating diameter | 2.10mm ID (0.083\"), 5.50mm OD (0.217\") |
