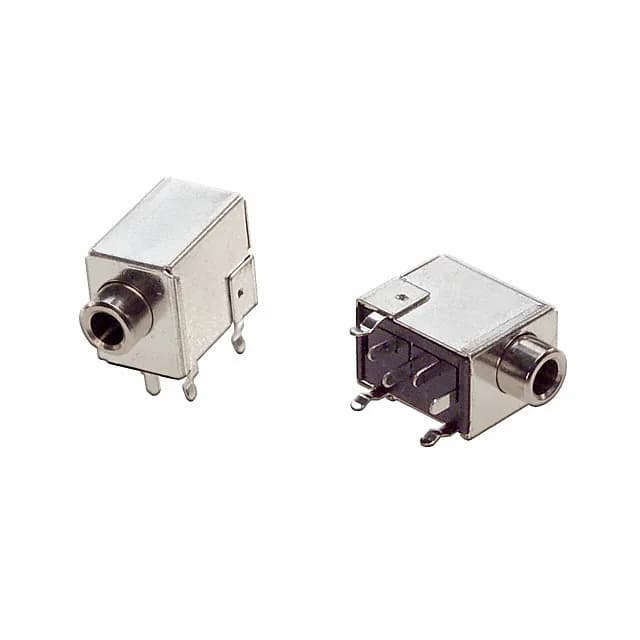

Same Sky SJ1-3534NS
MPNSJ1-3534NS
Active
$1.6600Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SJ1 |
| Mounting | Through Hole, Right Angle |
| Connector type | Phone Jack |
| Voltage - rated | 16VDC |
| Current rating | 300 mA |
| Operating temperature | -25°C ~ 85°C |
| Body color | Silver |
| Body material | Brass |
| Contact material | Brass |
| Housing material | Polybutylene Terephthalate (PBT) |
| Mating length (Depth) | 0.551\" (14.00mm) |
| Contact material - plating | Tin |
All specifications
| Parameter | Value |
|---|---|
| Gender | Female |
| Features | Board Lock |
| Package | Tray |
| Shielding | Shielded |
| Termination | Solder |
| Signal lines | Stereo (3 Conductor, TRS) |
| Actual diameter | 0.142\" (3.60mm) |
| Internal switch | Single Switch |
| Number of positions (Contacts) | 3 Conductors, 4 Contacts |
| Industry recognized mating diameter | 3.50mm (0.141\", 1/8\", Mini Plug) - Headphone |
