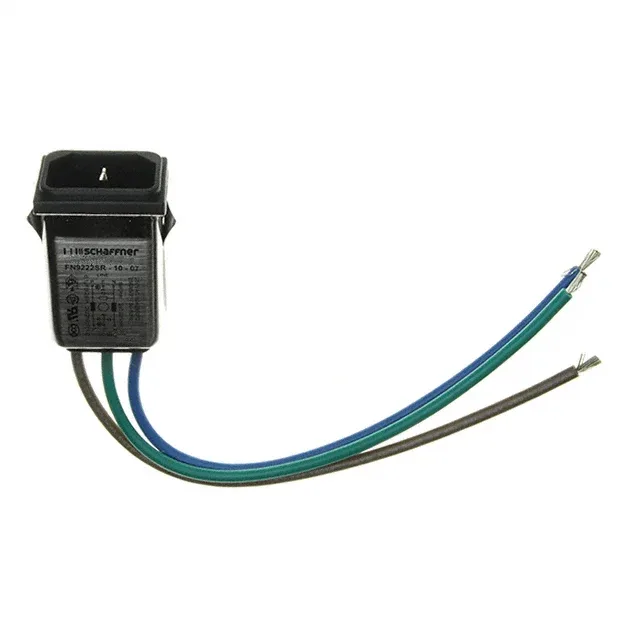

Schaffner EMC Inc. FN9222SR-10-07
MPNFN9222SR-10-07
Active
PWR ENT RCPT IEC320-C14 PNL WIRE
$9.92Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFN 9222
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | FN 9222 |
| Filter type | Filtered (EMI, RFI) - Commercial |
| Mounting | Panel Mount, Snap-In |
| Connector type | IEC 320-C14 |
| Current rating - filter | 10A |
| IP rating | IP40 |
| Panel cutout | Rectangular - 29.40mm x 20.80mm |
| Material flammability rating | UL94 V-2 |
| Approval agency | CQC, CSA, ENEC, UL |
| Package | Tray |
| Features | Bleed Resistor |
| Termination | Wire Leads |
| Panel thickness | 0.028\" ~ 0.059\" (0.70mm ~ 1.50mm) |
| Accomodates a fuse | No |
| Positions | 3 |
