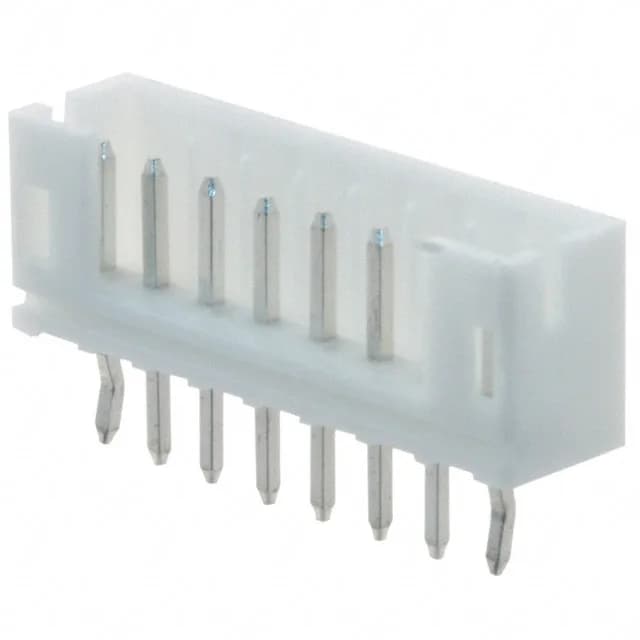

Sullins Connector Solutions SWR201-NRTN-S08-SA-WH
MPNSWR201-NRTN-S08-SA-WH
Active
CONN HEADER VERT 8POS 2MM
$0.3300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSWR201
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SWR201 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 125V |
| Current rating | 1A per Contact |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Brass |
| Insulation color | White |
| Insulation height | 0.236\" (6.00mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Contact finish - mating | Tin |
