TE Connectivity AMP Connectors 1-104071-0 — Pin Headers

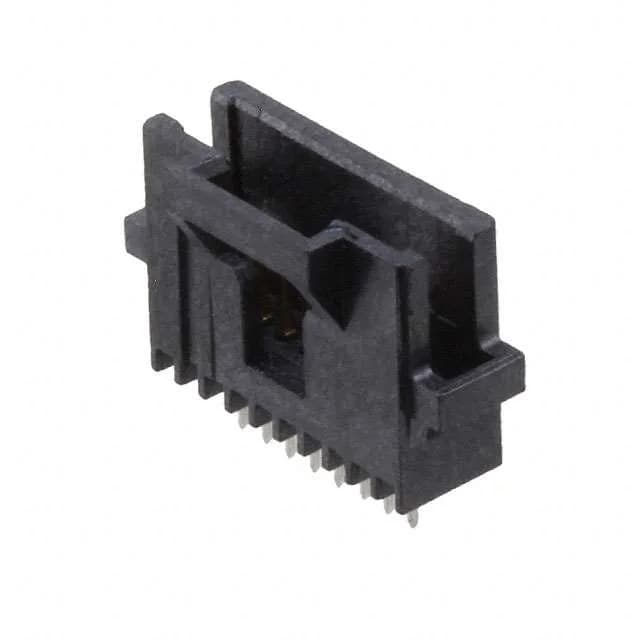

1-104071-0 TE AMPMODU System 50 Header, 8 Pos, 1.27mm

MPN1-104071-0
Active

TE Connectivity AMP Connectors AMPMODU System 50 pin header, 1-104071-0, vertical through-hole, 8 positions, 1.27mm pitch, shrouded 2-wall, gold mating finish, latch holder fastening.

$2.4900Ref. price · indicative, final on quote
RoHSNot applicable
SeriesAMPMODU System 50
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-104071-0 key specifications
ParameterValue
SeriesAMPMODU System 50
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Holder
Voltage rating30VAC
Operating temperature-65°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.390\" (9.91mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

1-104071-0 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTube
ShroudingShrouded - 2 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Medical, Telecommunications
Contact shapeCircular
Rows1
Pitch0.050\" (1.27mm)
Positions8
Contact finish - postTin-Lead
Contact length - post0.100\" (2.54mm)
Contact finish - matingGold
Contact length - mating0.125\" (3.18mm)
Contact finish thickness - post150.0µin (3.81µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board layout fit: 1.27mm pitch, 8 circuits, gold mating surface

The 1-104071-0 is a vertical through-hole header from TE's AMPMODU System 50 series, packing 8 positions on a tight 0.050" (1.27mm) pitch.

Mating half and retention: latch holder, 2-wall shroud

The header is shrouded with 2 walls and uses a latch holder fastening type — the mating receptacle clicks into place without a separate locking clip. This is a vibration-resistant mate for cable-to-board connections in enclosures where the connector pair won't be cycled daily. Contact length on the mating side is 0.125" (3.18mm), post length is 0.100" (2.54mm) — standard through-hole solder depth for a 1.6mm board. The circular male pins are copper alloy.

Frequently asked questions

What is the pitch of the 1-104071-0 header?

The pitch is 0.050" (1.27mm) — a tight spacing that saves board real estate but requires compatible 1.27mm-pitch receptacles.

Can 1-104071-0 be used for automotive applications?

Yes, automotive is one of the listed applications alongside general purpose, medical, and telecommunications. The -65°C to 105°C range and UL94 V-0 housing support under-hood or cabin environments.

What is the difference between 1-104071-0 and a 4-wall shrouded header?

This header has a 2-wall shroud — the mating receptacle is guided on two sides rather than fully enclosed. A 4-wall shroud (like the 1318699-3) provides more polarization and prevents mis-mating, but the 2-wall version is simpler to align in blind-mate situations.
