Gold-on-BeCu Contact for High-Cycle Signal Duty

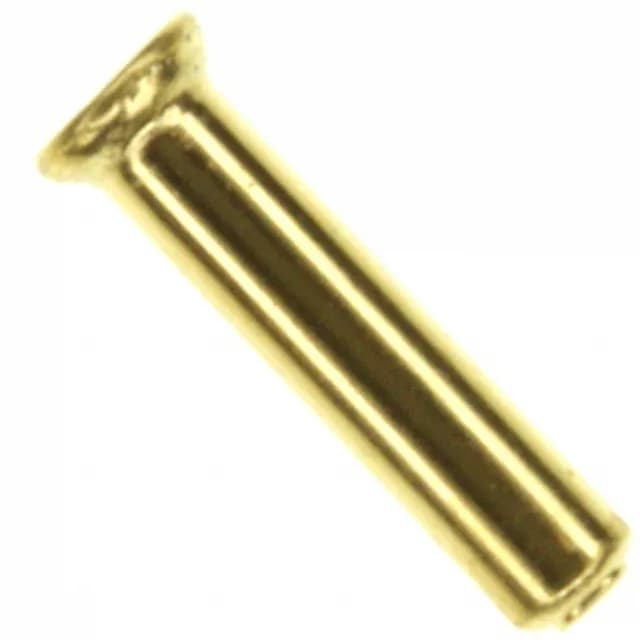

The 2-332095-2 is a PCB pin socket from TE Connectivity's Series 1, designed to accept a mating pin diameter of 0.013" to 0.020" (0.33mm to 0.51mm). This is a signal-level socket, not a power contact; the narrow pin range and fine gold suit low-level circuits where contact resistance stability matters.
Solder Termination with No Tail — Board-Mount Fit
Termination is solder only, with a "No Tail" design — the socket sits flush in the plated through-hole, and the solder joint is made at the bottom of the hole. The mounting hole diameter is 0.041" (1.04mm), and the overall length is 0.178" (4.52mm) with a socket depth of 0.165" (4.19mm). The flange diameter is 0.059" (1.50mm), which acts as a stop against the board surface during insertion. This is a press-in-then-solder part; there is no press-fit interference retention.
It is RoHS compliant.
Knockout Bottom Feature for Panel Feed-Through
The socket includes a "Knockout Bottom" feature — the bottom of the socket body can be punched out to allow the mating pin to pass through the socket and extend beyond the board. This is useful when the pin must protrude for a secondary connection or when the socket is used as a feed-through in a panel or board stack.
