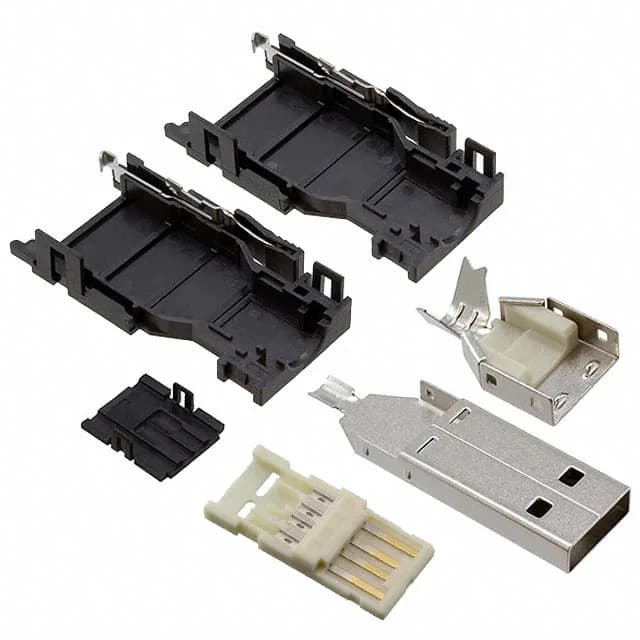

USB-A Plug for In-Line Cable Assemblies
It terminates via solder to a cable and mounts free-hanging (in-line), making it the plug half of a standard USB 2.0 cable assembly. The shielded steel shell provides EMI containment for the data pair, and the latch lock secures the mated connection against accidental disconnect. Gold contact finish on the pins resists corrosion over the rated 1500 mating cycles — a durability figure that suits equipment with frequent cable swaps, such as test fixtures or field-service tools.
1 A at 30 VAC — USB 2.0 Power and Signal
Rated 1 A per contact at 30 VAC, the 2013798-1 carries the standard USB 2.0 power bus (5 V, up to 500 mA for low-power devices, 900 mA for high-power under USB 2.0 spec) with margin. The 1 A rating is per the connector's own thermal limit, not the USB bus current — it will handle the full bus load without exceeding the UL94 V-0 housing's temperature rise ceiling.
The solder termination requires a soldering iron or selective solder process; no crimp tool needed.
