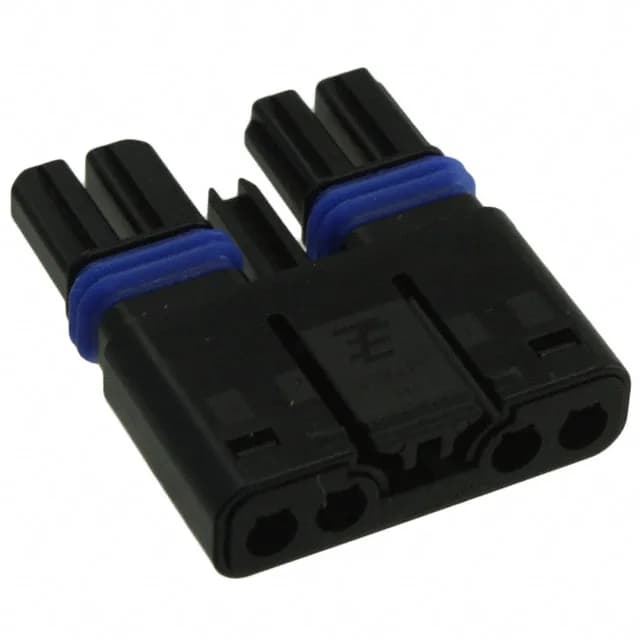

SlimSeal Plug Housing for Sealed Harness Builds
The 2106135-4: The 0.138" (3.50mm) pitch sets the centerline spacing for the mating receptacle and crimp terminals, so the harness layout matches the connector footprint. Rated IP67 Dust Tight, Waterproof, this housing seals the mated pair against moisture and particulate ingress — suited for outdoor lighting, agricultural equipment, or washdown-area harnesses where a standard unsealed connector would fail.
Current Rating Depends on Wire Gauge
The current rating is wire-gauge dependent: 3.5A per contact with 22-24 AWG wire, and 5A per contact with 18-20 AWG wire. That means the harness builder selects the terminal and wire section to match the load — a 5A circuit needs the heavier 18-20 AWG range, while a 3.5A signal line can use finer 22-24 AWG. The 400V voltage rating gives ample headroom for low-voltage DC or 277VAC lighting circuits.
30 Mating Cycles — Sealed, Not for Frequent Reconnect
Rated for 30 mating cycles, this housing is built for a one-time assembly or occasional field disconnect — not daily plug/unplug duty.
