1-5745967-0
TE Connectivity AMP Connectors
25BlackAMPLIMITE HD-20
Ref. price$8.9400
Lead time on requestGet quote ›
TE Connectivity AMP Connectors 1574 Series
13 variants · TE Connectivity AMP Connectors
About the TE Connectivity AMP Connectors 1574 Series
The TE Connectivity AMP Connectors 1574 Series series groups 13 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common backset spacing of -, color of Black and contact finish of Gold. Variants differ by connector type, contact finish thickness and contact material, so you can match the exact connector type your application requires using the selection guide below. All listed TE Connectivity AMP Connectors 1574 Series part numbers are active and orderable.
Select a variant by
- Connector type
- Plug, Male Pins · Receptacle, Female Sockets
- Contact finish thickness
- - · 30.0µin (0.76µm) · Flash
- Contact material
- Brass · Phosphor Bronze
- Dielectric material
- Polyester · Thermoplastic
- Features
- - · Grounding Indents
- Flange feature
- Housing/Shell (4-40) · Mating Side, Female Screwlock (4-40)
- Positions
- 9 · 15 · 25 · 37
- Shell size, connector layout
- 1 (DE, E) · 2 (DA, A) · 3 (DB, B) · 4 (DC, C)
Shared specifications
- Backset spacing
- -
- Color
- Black
- Contact finish
- Gold
- Contact form
- -
- Current rating
- 6A
- Gender
- Signal
- Ingress protection
- -
- Material flammability rating
- UL94 V-0
- Mounting type
- Through Hole
- Operating temperature
- -55°C ~ 105°C
- Package
- Tube
- Rows
- 2
Variant comparison

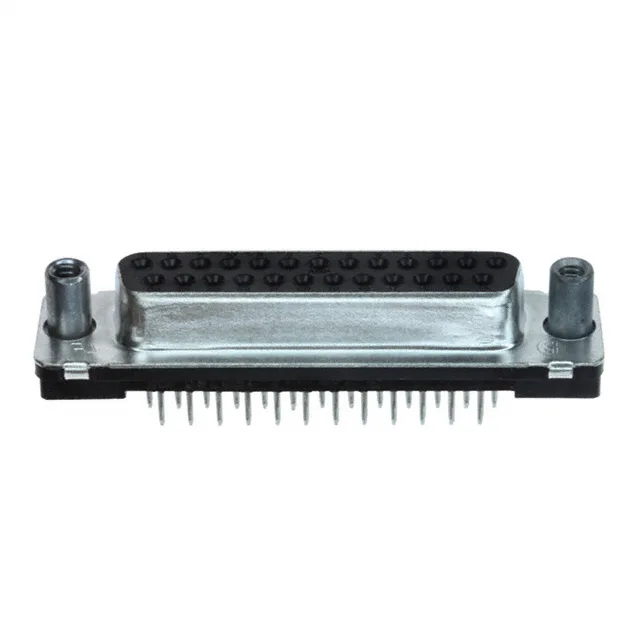

| Parameter | 1-5745967-0 | 1-5745967-6 | 1-5745968-3 | 1-5745968-4 | 1-5745968-5 | 1-5745968-6 |
|---|---|---|---|---|---|---|
| Connector type | Receptacle, Female Sockets | Receptacle, Female Sockets | Plug, Male Pins | Plug, Male Pins | Plug, Male Pins | Plug, Male Pins |
| Contact finish thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | Flash | Flash | Flash | Flash |
| Contact material | Phosphor Bronze | Phosphor Bronze | Brass | Brass | Brass | Brass |
| Dielectric material | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester |
| Features | - | - | Grounding Indents | Grounding Indents | Grounding Indents | Grounding Indents |
| Flange feature | Housing/Shell (4-40) | Mating Side, Female Screwlock (4-40) | Mating Side, Female Screwlock (4-40) | Mating Side, Female Screwlock (4-40) | Mating Side, Female Screwlock (4-40) | Mating Side, Female Screwlock (4-40) |
| Positions | 25 | 25 | 25 | 25 | 25 | 25 |
| Shell size, connector layout | 3 (DB, B) | 3 (DB, B) | 3 (DB, B) | 3 (DB, B) | 3 (DB, B) | 3 (DB, B) |
Request a quote on any TE Connectivity AMP Connectors 1574 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the TE Connectivity AMP Connectors 1574 Series variants differ?
- TE Connectivity AMP Connectors 1574 Series part numbers differ by connector type, contact finish thickness, contact material and dielectric material. Use the selection guide above to pick by connector type.
- How many TE Connectivity AMP Connectors 1574 Series part numbers are listed?
- 13 TE Connectivity AMP Connectors 1574 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for TE Connectivity AMP Connectors 1574 Series?
- Request a quote (RFQ) for any TE Connectivity AMP Connectors 1574 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
