1-796634-2
TE Connectivity AMP Connectors
12GreenPlug, Female Sockets
Ref. price$12.2800
Lead time on requestGet quote

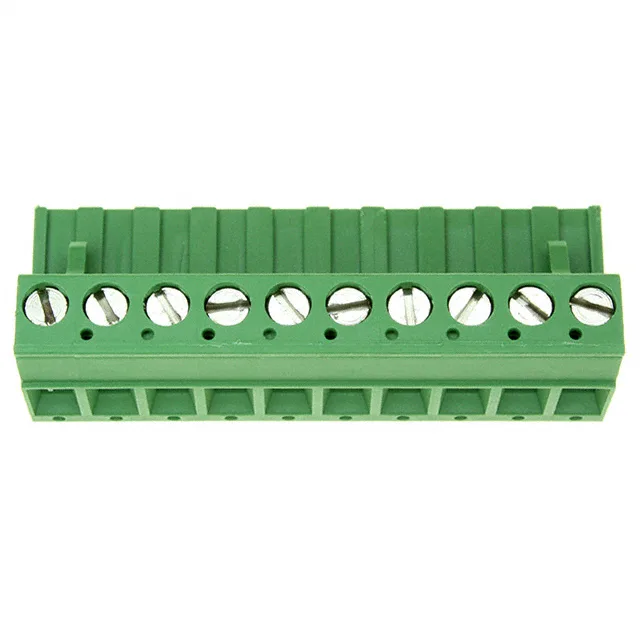

Buchanan 5.08mm Terminal Block Header
3 variants · TE Connectivity AMP Connectors
About the Buchanan 5.08mm Terminal Block Header
IC Source Direct is a China connector distributor, supplier and independent procurement agent for Buchanan 5.08mm Terminal Block Header components, matching housing, contact and mating cycles across the Shenzhen interconnect channel. The TE Connectivity AMP Connectors Buchanan 5.08mm Terminal Block Header series groups 3 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common contact material of Phosphor Bronze, contact mating finish of Tin and contact tail length of -. Variants differ by color, positions and positions per level, so you can match the exact color your application requires using the selection guide below. All listed Buchanan 5.08mm Terminal Block Header part numbers are active and orderable.
Select a variant by
- Color
- Black · Green
- Positions
- 10 · 12 · 16
- Positions per level
- 10 · 12 · 16
Shared specifications
- Contact material
- Phosphor Bronze
- Contact mating finish
- Tin
- Contact tail length
- -
- Current - IEC
- -
- Current - UL
- 15 A
- Features
- Retention Latches (Non-Wire Side)
- Header orientation
- -
- Housing material
- Polyamide (PA66), Nylon 6/6
- Insulation height
- 0.610\" (15.49mm)
- IP rating
- -
- Material flammability rating
- UL94 V-0
- Mounting
- Free Hanging (In-Line)
Variant comparison
| Parameter | 1-796634-0 | 1-796634-2 | 1-796635-6 |
|---|---|---|---|
| Color | Green | Green | Black |
| Positions | 10 | 12 | 16 |
| Positions per level | 10 | 12 | 16 |
Request a quote on any Buchanan 5.08mm Terminal Block Header part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
