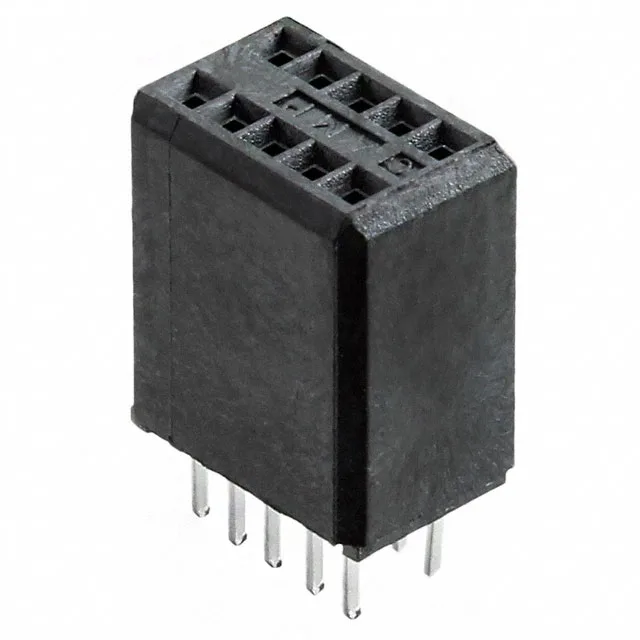

5-104078-1
TE Connectivity AMP Connectors
20-65°C ~ 105°C2
Ref. price$5.4300
Lead time on requestGet quote ›
TE Connectivity AMP Connectors 5104 Series
24 variants · TE Connectivity AMP Connectors
About the TE Connectivity AMP Connectors 5104 Series
The TE Connectivity AMP Connectors 5104 Series series groups 24 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common applications of -, connector type of Receptacle and contact finish - mating of Gold. Variants differ by contact length - post, contact material and current rating, so you can match the exact contact length - post your application requires using the selection guide below. All listed TE Connectivity AMP Connectors 5104 Series part numbers are active and orderable.
Select a variant by
- Contact length - post
- - · 0.100\" (2.54mm)
- Contact material
- Copper Alloy · Phosphor Bronze
- Current rating
- - · 1A
- Features
- - · Board Guide · Board Lock
- Insulation height
- 0.117\" (2.97mm) · 0.350\" (8.89mm) · 0.370\" (9.40mm)
- Insulation material
- Polyphthalamide (PPA) · Thermoplastic, Glass Filled
- Mated stacking heights
- - · 11.43mm, 12.57mm · 11.94mm, 13.08mm
- Mounting type
- Surface Mount · Through Hole · Through Hole, Right Angle
Shared specifications
- Applications
- -
- Connector type
- Receptacle
- Contact finish - mating
- Gold
- Contact finish - post
- Tin
- Contact finish thickness - mating
- 30.0µin (0.76µm)
- Contact finish thickness - post
- 150.0µin (3.81µm)
- Contact shape
- Square
- Fastening type
- Push-Pull
- Gender
- Female Socket
- Ingress protection
- -
- Insulation color
- Black
- Material flammability rating
- UL94 V-0
Variant comparison
| Parameter | 5-104078-1 | 5-104078-2 | 5-104078-3 | 5-104078-4 | 5-104078-5 | 5-104078-7 |
|---|---|---|---|---|---|---|
| Contact length - post | 0.100\" (2.54mm) | 0.100\" (2.54mm) | 0.100\" (2.54mm) | 0.100\" (2.54mm) | 0.100\" (2.54mm) | 0.100\" (2.54mm) |
| Contact material | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy |
| Current rating | 1A | 1A | 1A | 1A | 1A | 1A |
| Features | - | - | - | - | - | - |
| Insulation height | 0.350\" (8.89mm) | 0.350\" (8.89mm) | 0.350\" (8.89mm) | 0.350\" (8.89mm) | 0.350\" (8.89mm) | 0.350\" (8.89mm) |
| Insulation material | Thermoplastic, Glass Filled | Thermoplastic, Glass Filled | Thermoplastic, Glass Filled | Thermoplastic, Glass Filled | Thermoplastic, Glass Filled | Thermoplastic, Glass Filled |
| Mated stacking heights | 11.43mm, 12.57mm | 11.43mm, 12.57mm | 11.43mm, 12.57mm | 11.43mm, 12.57mm | 11.43mm, 12.57mm | 11.43mm, 12.57mm |
| Mounting type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
Request a quote on any TE Connectivity AMP Connectors 5104 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the TE Connectivity AMP Connectors 5104 Series variants differ?
- TE Connectivity AMP Connectors 5104 Series part numbers differ by contact length - post, contact material, current rating and features. Use the selection guide above to pick by contact length - post.
- How many TE Connectivity AMP Connectors 5104 Series part numbers are listed?
- 24 TE Connectivity AMP Connectors 5104 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for TE Connectivity AMP Connectors 5104 Series?
- Request a quote (RFQ) for any TE Connectivity AMP Connectors 5104 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
