TE Connectivity AMP Connectors 5-104078-5 — Female Socket Headers

5-104078-5 TE Connectivity AMPMODU System 50 Receptacle

MPN5-104078-5
Active

TE Connectivity AMPMODU System 50, Female Socket Receptacle, 50 Positions, 2 Row, 0.050" (1.27mm) Pitch, Through Hole, Solder Termination, Gold Mating Finish, 1 A, 30 VAC, Active

$11.8400Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5-104078-5 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPMODU System 50
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

5-104078-5 key specifications
ParameterValue
SeriesAMPMODU System 50
TypeFemale Socket
MountingThrough Hole
Connector typeReceptacle
Fastening typePush-Pull
Voltage rating30VAC
Current rating1A
Operating temperature-65°C~105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.350\" (8.89mm)
Insulation materialThermoplastic, Glass Filled

All specifications

5-104078-5 additional specifications
ParameterValue
Mated stacking heights11.43mm, 12.57mm
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageTube
TerminationSolder
Contact shapeSquare
Rows2

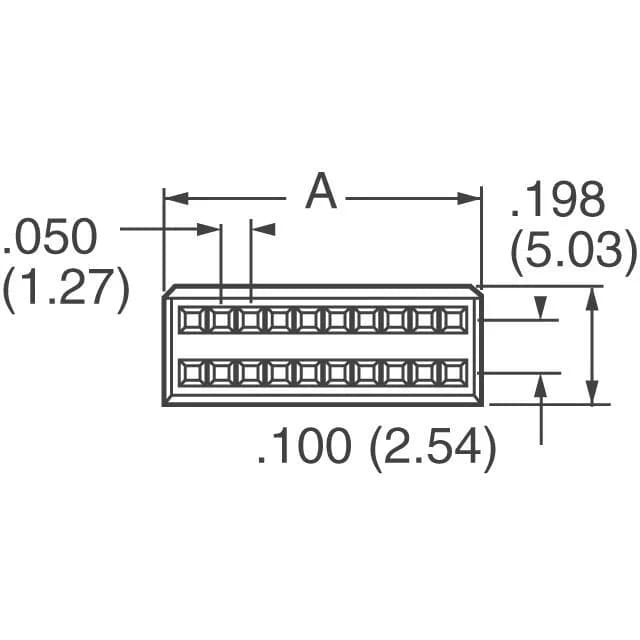

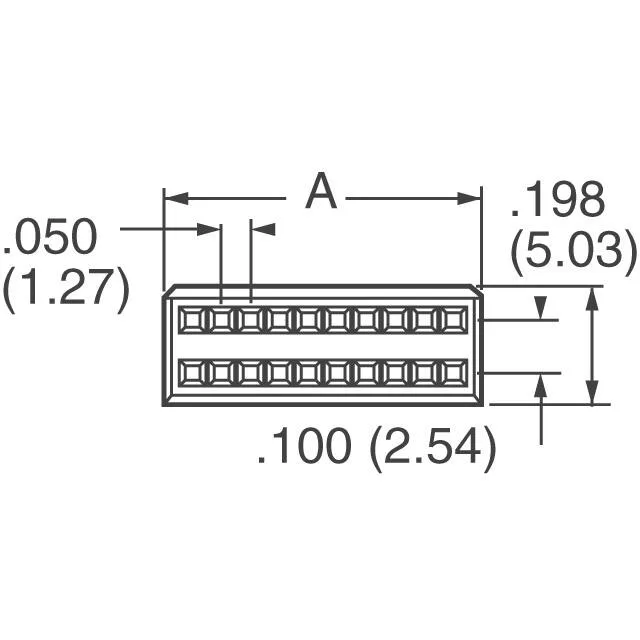

Pitch0.050\" (1.27mm)
Positions50
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.100\" (2.54mm)
Contact finish - matingGold
Contact finish thickness - post150.0µin (3.81µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board-to-Board Fit: Pitch, Stack Height, and Contact Density

The 5-104078-5: This is a 50-position, dual-row receptacle from the AMPMODU System 50 series, designed for board-to-board stacking. Mated stacking heights of 11.43 mm and 12.57 mm are specified, giving two z-height options for mezzanine spacing.

The mating interface carries 30.0 µinch (0.76 µm) gold over copper alloy. The solder posts are finished with 150.0 µinch (3.81 µm) tin, which wets well during wave or hand soldering and provides a reliable intermetallic bond to the PCB pad.

Environmental and Compliance Ratings

The 1 A per contact limit aligns with the fine-pitch, high-density design.

Frequently asked questions

What is the mating connector for 5-104078-5?

This AMPMODU System 50 receptacle mates with a matching 0.050" pitch pin header (male) from the same series.

Is 5-104078-5 RoHS compliant?

Yes, it is ROHS3 compliant per the manufacturer's declaration.
