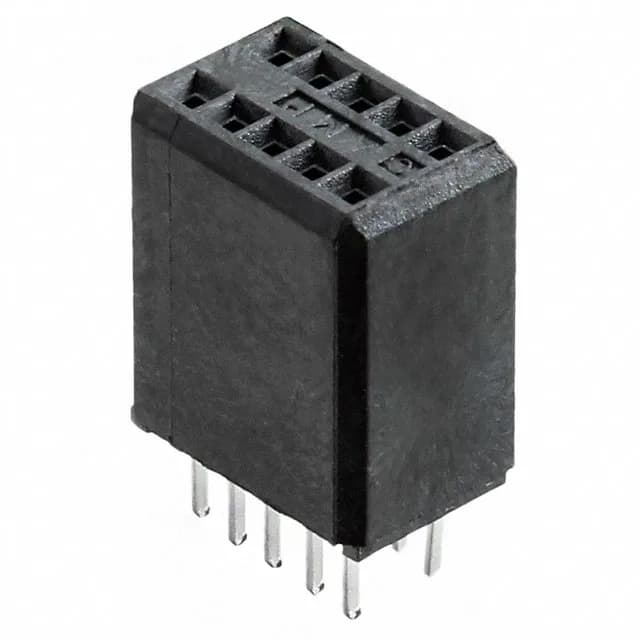

TE Connectivity AMPMODU System 50, 5-104078-3, board-to-board receptacle, 10 positions, dual-row, 0.050" (1.27 mm) pitch, through-hole solder termination, gold mating finish, 1 A, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU System 50 |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 30VAC |
| Current rating | 1A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.350\" (8.89mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Parameter | Value |
|---|---|
| Mated stacking heights | 11.43mm, 12.57mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tube |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.100\" (2.54mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 5-104078-3: This is a 10-position, dual-row receptacle from the AMPMODU System 50 series, pitched at 0.050" (1.27 mm) on the mating interface with a row spacing of 0.100" (2.54 mm). Mated stacking heights of 11.43 mm or 12.57 mm let you pair it with a matching header to hit a specific board-to-board gap.
Mounting is through-hole solder.
Yes, it is ROHS3 compliant.
The peer MPN 1376775-2 is a 5-position receptacle from the same AMPMODU System 50 series with 3 A rating and 250 VAC rating, but it has fewer positions and a different package (Box vs Tube). For a direct position-count match, 5-104078-3 is the one.
