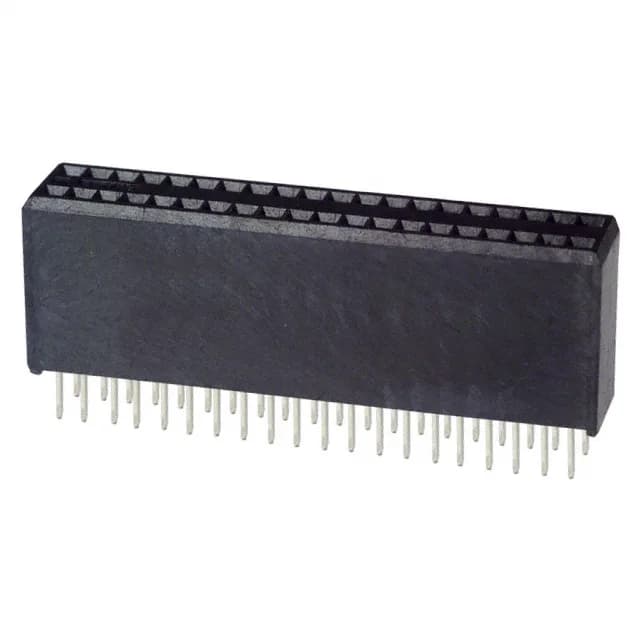

TE Connectivity AMP Connectors 5-104078-2 — Female Socket Headers

5-104078-2 TE Connectivity AMPMODU System 50 40-Position

MPN5-104078-2
Active

TE Connectivity AMPMODU System 50, 5-104078-2, 40-position receptacle, 2-row, 0.050" (1.27 mm) pitch, through-hole solder, gold mating finish, 1 A, 30 VAC, UL94 V-0.

$9.8200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPMODU System 50
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5-104078-2 key specifications
ParameterValue
SeriesAMPMODU System 50
TypeFemale Socket
MountingThrough Hole
Connector typeReceptacle
Fastening typePush-Pull
Voltage rating30VAC
Current rating1A
Operating temperature-65°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.350\" (8.89mm)
Insulation materialThermoplastic, Glass Filled

All specifications

5-104078-2 additional specifications
ParameterValue
Mated stacking heights11.43mm, 12.57mm
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageTube
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.050\" (1.27mm)
Positions40
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.100\" (2.54mm)
Contact finish - matingGold
Contact finish thickness - post150.0µin (3.81µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

What this 40-position receptacle does in a board-to-board stack

The tin-plated posts (150.0 µ" / 3.81 µm) are solder-compatible for through-hole wave or hand soldering.

The key difference is circuit count: 40 positions on the 5-104078-2 versus 5 on the 1376775-2. The 1376775-2 carries a higher current rating of 3 A and a voltage rating of 250 VAC, but its gold plating is only 8.00 µ" (0.203 µm) — a thinner flash that limits mating cycle life compared to the 30.0 µ" on the 5-104078-2. For a high-density, high-cycle application, the 5-104078-2 is the better choice.

Frequently asked questions

Where can I buy the 5-104078-2 connector?

The 5-104078-2 is sourced to order through independent distribution. Submit an RFQ for current availability and pricing — no stock-holding claim is made here.
