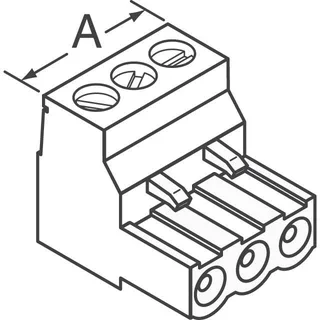

796640-2
TE Connectivity AMP Connectors
2Green-40°C ~ 110°C
Ref. price$1.3900
Lead time on requestGet quote ›
TE Connectivity AMP Connectors 79664 Series
17 variants · TE Connectivity AMP Connectors
About the TE Connectivity AMP Connectors 79664 Series
The TE Connectivity AMP Connectors 79664 Series series groups 17 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common contact mating finish of Tin, current - IEC of - and current - UL of 15 A. Variants differ by color, contact material and contact tail length, so you can match the exact color your application requires using the selection guide below. All listed TE Connectivity AMP Connectors 79664 Series part numbers are active and orderable.
Select a variant by
- Color
- Black · Green
- Contact material
- Copper Alloy · Phosphor Bronze
- Contact tail length
- - · 0.138\" (3.50mm)
- Features
- - · Retention Latches (Non-Wire Side), Side Stacking
- Header orientation
- - · Vertical
- Insulation height
- 0.472\" (12.00mm) · 0.610\" (15.49mm)
- Mounting type
- Free Hanging (In-Line) · Through Hole
- Operating temperature
- -40°C ~ 110°C · -40°C~110°C
Shared specifications
- Contact mating finish
- Tin
- Current - IEC
- -
- Current - UL
- 15 A
- Housing material
- Polyamide (PA66), Nylon 6/6
- Ingress protection
- -
- Material flammability rating
- UL94 V-0
- Number of levels
- 1
- Package
- Bulk
- Pitch
- 0.197\" (5.00mm)
- Voltage - UL
- 300 V
Variant comparison
| Parameter | 796640-2 | 796640-3 | 796640-4 | 796640-5 | 796640-6 | 796640-8 |
|---|---|---|---|---|---|---|
| Color | Green | Green | Green | Green | Green | Green |
| Contact material | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
| Contact tail length | - | - | - | - | - | - |
| Features | Retention Latches (Non-Wire Side), Side Stacking | Retention Latches (Non-Wire Side), Side Stacking | Retention Latches (Non-Wire Side), Side Stacking | Retention Latches (Non-Wire Side), Side Stacking | Retention Latches (Non-Wire Side), Side Stacking | Retention Latches (Non-Wire Side), Side Stacking |
| Header orientation | - | - | - | - | - | - |
| Insulation height | 0.610\" (15.49mm) | 0.610\" (15.49mm) | 0.610\" (15.49mm) | 0.610\" (15.49mm) | 0.610\" (15.49mm) | 0.610\" (15.49mm) |
| Mounting type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Operating temperature | -40°C ~ 110°C | -40°C~110°C | -40°C~110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C |
Request a quote on any TE Connectivity AMP Connectors 79664 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the TE Connectivity AMP Connectors 79664 Series variants differ?
- TE Connectivity AMP Connectors 79664 Series part numbers differ by color, contact material, contact tail length and features. Use the selection guide above to pick by color.
- How many TE Connectivity AMP Connectors 79664 Series part numbers are listed?
- 17 TE Connectivity AMP Connectors 79664 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for TE Connectivity AMP Connectors 79664 Series?
- Request a quote (RFQ) for any TE Connectivity AMP Connectors 79664 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
