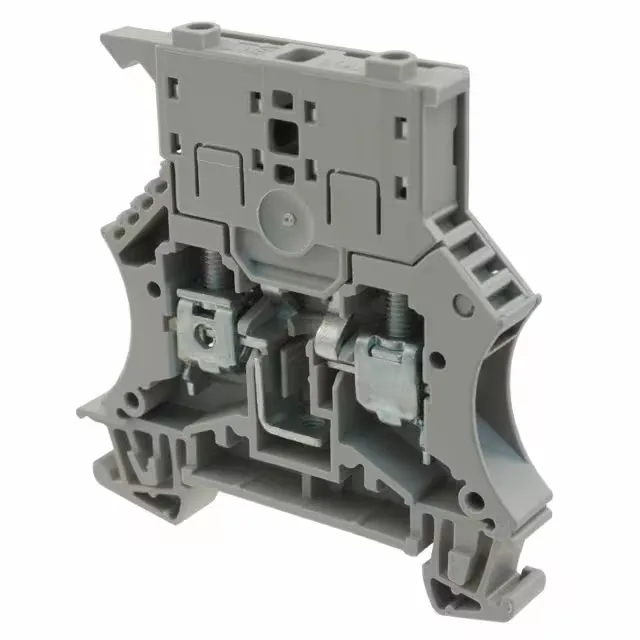

Weidmüller 1011000000
MPN1011000000
Active
CONN TERM BLK DISCONNECT 8-20AWG
$8.25Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesW
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Disconnect |
| Series | W |
| Fuse type | 5mm x 20mm |
| Disconnect type | Fuse, Removable Plug |
| Voltage - UL | 600V |
| Voltage - IEC | 250V |
| Current - UL | 9.5 A |
| Current - IEC | 6.3 A |
| Terminal - width | 7.9mm |
| Wire gauge or range - AWG | 8-20 AWG |
| Wire gauge or range - mm2 | 0.5-10mm² |
| Color | Beige |
All specifications
| Parameter | Value |
|---|---|
| Material - insulation | Thermoplastic, Wemid |
| Material flammability rating | UL94 V-0 |
| Package | Box |
| Number of levels | 1 |
| Stripping length | 12mm |
| Termination style | Screw |
| Positions | 2 |
