Weidmüller 1351660000
MPN1351660000
Active

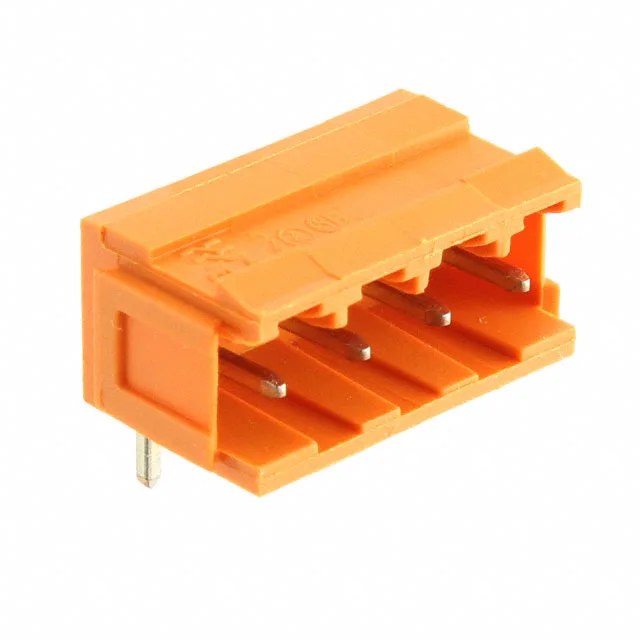

TERM BLOCK HDR 4POS 90DEG 5.08MM
$2.29Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesUnimate SLA
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | Unimate SLA |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Voltage - IEC | 250 V |
| Current - UL | 10 A |
| Current - IEC | 10A |
| Operating temperature | -20°C ~ 120°C |
| Color | Orange |
| Contact material | Copper Alloy |
| Housing material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation height | 0.370\" (9.40mm) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
| Package | Bulk |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | 90°, Right Angle |
| Contact tail length | 0.177\" (4.50mm) |
| Positions | 4 |
| Positions per level | 4 |
| Contact mating finish | Tin |
