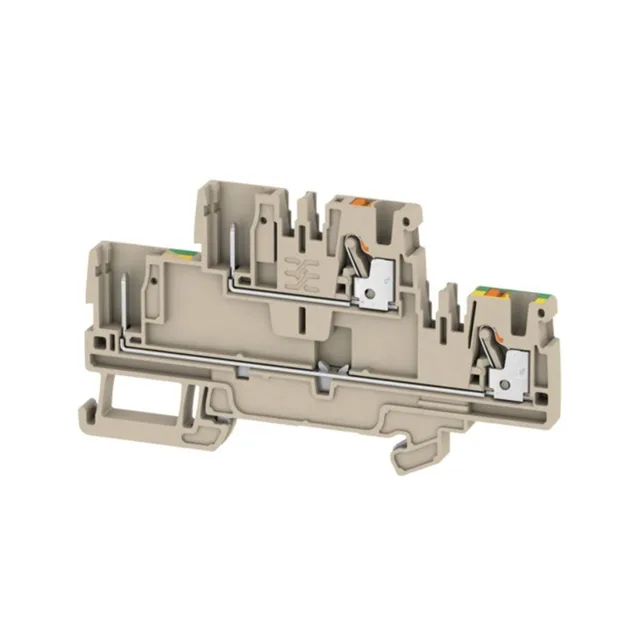

Weidmüller 1548130000
MPN1548130000
Active
MULTI-TIER MODULAR TERMINAL, PUS
$6.95Ref. price · indicative, final on quote
SeriesA
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug Connection |
| Series | A |
| Mounting | DIN Rail |
| Voltage - UL | 600 V |
| Voltage - IEC | 800 V |
| Current - UL | 20 A |
| Current - IEC | 24 A |
| Terminal - width | 5.1mm |
| Wire gauge or range - AWG | 12-28 AWG |
| Wire gauge or range - mm2 | 0.5-2.5mm² |
| Operating temperature | -60°C ~ 130°C |
| Height | 3.583\" (91.00mm) |
All specifications
| Parameter | Value |
|---|---|
| Housing color | Beige |
| Material - insulation | Thermoplastic, Wemid |
| Material flammability rating | UL94 V-0 |
| Length | 1.988\" (50.50mm) |
| Package | Box |
| Number of levels | 2; 1 Grounded |
| Stripping length | 10mm |
| Termination style | Plug Receptacles, Push In, Spring |
| Positions | 4 |
