Weidmüller 1711960000
MPN1711960000
Active

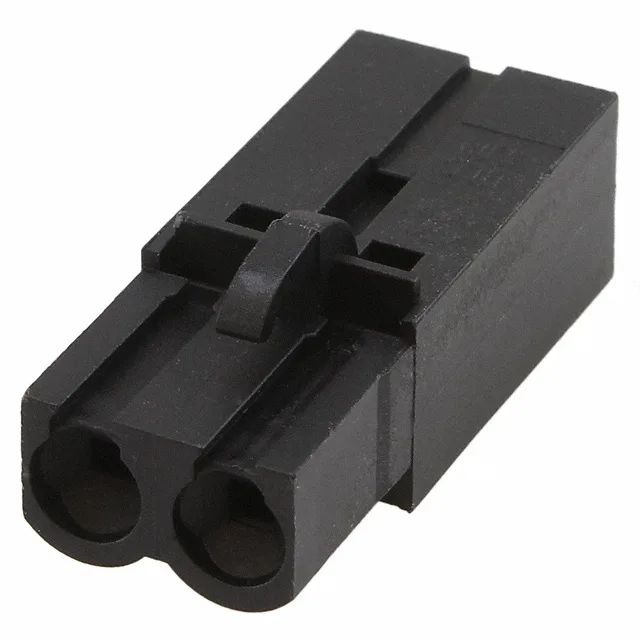

TERM BLOCK PLUG 2POS STR 5.08MM
$0.76Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesOmnimate BL
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug Housing for Female Sockets |
| Series | Omnimate BL |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Voltage - IEC | 400 V |
| Current - UL | 10 A |
| Current - IEC | 21A |
| Plug wire entry | 180° |
| Wire gauge or range - AWG | 14-26 AWG |
| Operating temperature | -50°C ~ 100°C |
| Color | Black |
| Housing material | Polybutylene Terephthalate (PBT), Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Insulation height | 0.397\" (10.08mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
| Package | Bulk |
| Features | Retention Latches (Non-Wire Side) |
| Number of levels | 1 |
| Termination style | Crimp |
| Positions | 2 |
| Positions per level | 2 |
